S100-BAA-SEAE-B30

Image shown may not be actual product

S100-BAA-SEAE-B30

0 reviews

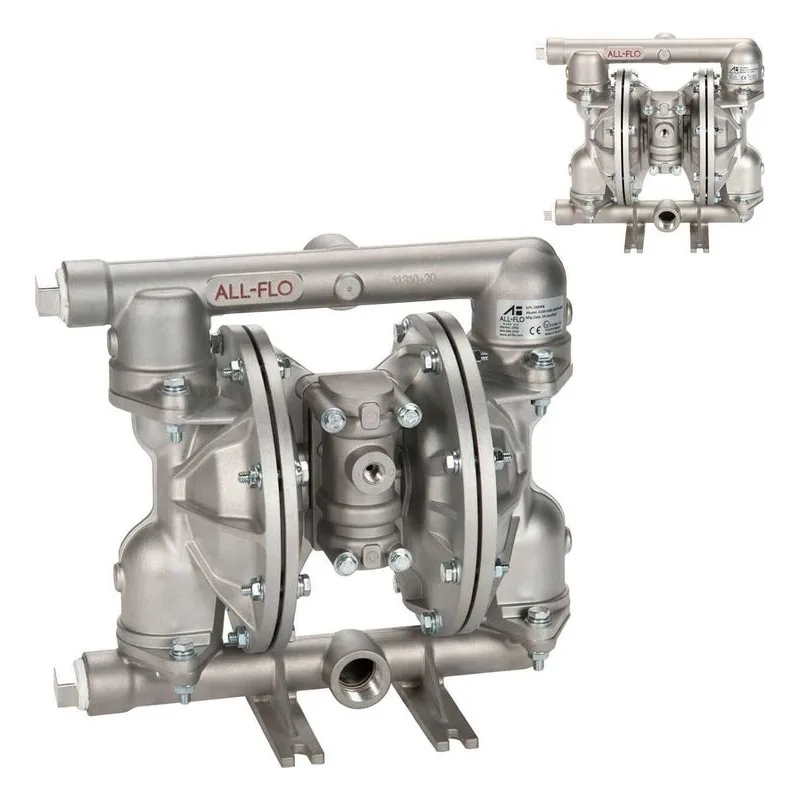

All-Flo S100-BAA-SEAE-B30 S Series S100 Bolted Metal 1" Max-Pass Solids Handling Air Operated Double-Diaphragm AODD Pump. Suction Center Front / Discharge Center Rear, 1" BSPT Connections. Aluminum Air, Liquid Sections & Valve Seats, Santoprene Diaphragms, EPDM Balls & O-Rings. 46 gpm (174 lpm) Maximum Flow, 3/4" (19 mm) Max Solids. Wet End Repair Kit SWE-100-SEXE-M, Air End Kit SAK-100-A Available to order.

$1,221.80

Best Price Guarantee!
244PumpPoints

Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.

Item: S100-BAA-SEAE-B30

Overview
Series Info
Reviews
Literature/Manuals
Repair Parts

S100-BAA-SEAE-B30

Air Chamber	Aluminum
Air Inlet	1/2" FNPT
Air Supply Pressure	120 psi (8.3 bar) Maximum
Base Model Number	S100
Configuration	Suction Center Front / Discharge Center Rear
Connection Type	BSPT
Construction	Bolted
Diaphragm	Santoprene
Discharge NPT (Inches)	1"
Material	316 Stainless Steel
Maximum Flow (GPM)	46 gpm (174 lpm)

Max Suction Lift	Dry: 18 ft (5.5 m); Wet: 27.5 ft (8.4 m)
Model Series	S Series
Other Factors	No Special Options
Product Notes	Zinc Plated Steel Hardware, Plastic Muffler
Pump Size	1"
Solids (Inches)	3/4" (19 mm)
Suction NPT (Inches)	1"
Valve Balls	EDPM Max-Pass Valve
Valve / Seat / O-Ring	Aluminum Seat / EPDM O-Rings
Wetted Parts	Aluminum

Specialty Diaphragm Pumps Information

MAX‑PASS® S Series — Solids‑Handling Architecture

The MAX‑PASS® S Series incorporates a high‑flow, obstruction‑resistant internal geometry designed to move suspended solids without clogging or performance degradation. Its flow‑through design reduces shear, minimizes pulsation, and maintains consistent volumetric output across varying viscosities.

Key Technical Characteristics

Flow‑through solids‑handling chamber for reduced blockage
Optimized check‑valve geometry for improved particulate passage
Available in plastic or metal wetted materials
Suitable for abrasive, slurry, and high‑particulate applications

Available Models

Plastic Pumps

S038 (3/8") — Compact footprint for low‑flow dosing and transfer
S050 (1/2") — General‑purpose solids‑handling performance
S100 (1") — High‑flow configuration for demanding process lines

Metal Pumps

S050 (1/2") — Enhanced durability for aggressive or high‑pressure environments
S100 (1") — Industrial‑grade construction for continuous‑duty operation

Legacy Plastic Pumps — Proven Chemical Compatibility

All‑Flo’s legacy plastic pumps provide stable performance in applications requiring corrosion resistance, low weight, and compatibility with a broad range of process chemicals. These models are widely used in chemical dosing, wastewater treatment, and general fluid transfer.
