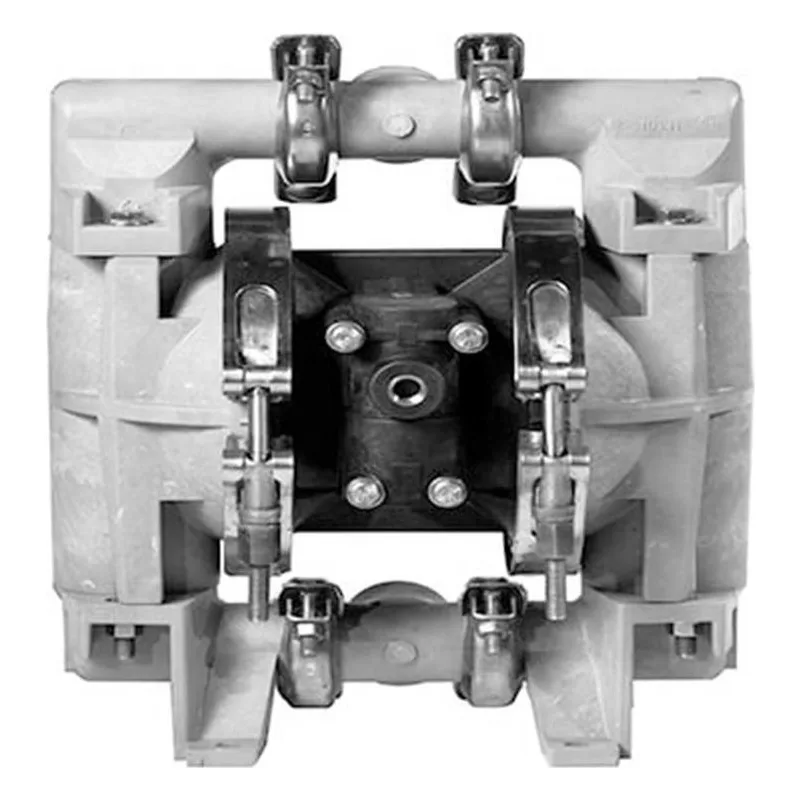

C100-BPP-GNPN-G70

Image shown may not be actual product

C100-BPP-GNPN-G70

0 reviews

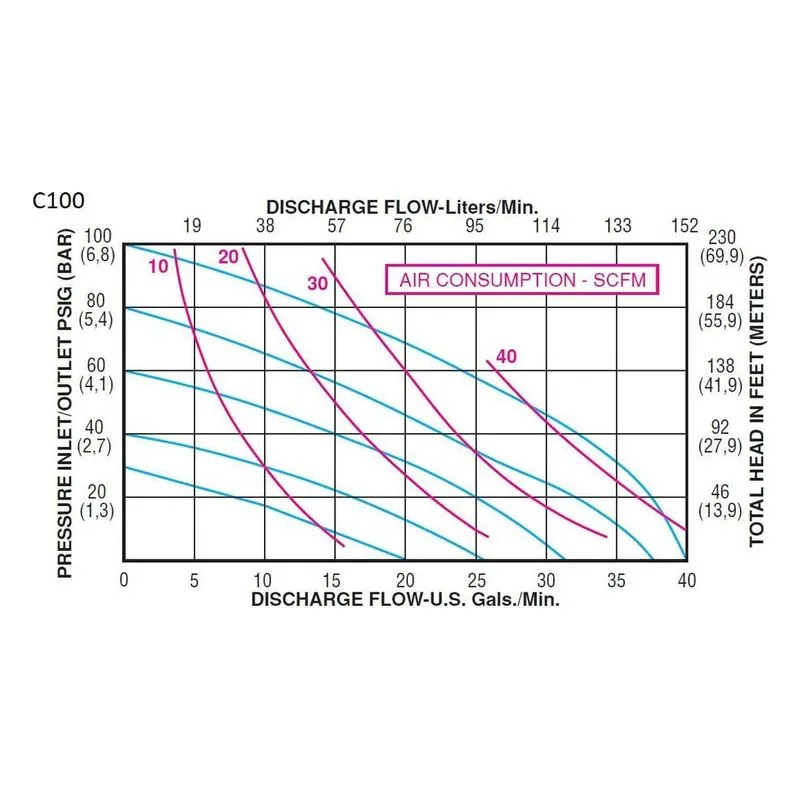

All-Pro C100-BPP-GNPN-G70 C100 Specialty Diaphragm Pumps. 40 GPM Maximum Flow Rate with a Max Pressure of100 PSI. Capable of handling 1/4" Diameter Solids with a 1" Liquid Inlet and a 1" Liquid Discharge and 15 ft-H2O (4.6 m-H2O) Dry, 26 ft-H2O (7.9 m-H2O) Wet Maximum Lift. Build Materials consist of a Polypropylene Intermediate-Pneumatic Shift Air Section, Bunalast Diaphragm, Buna-N Valve/Ball and Buna-N O-Rings.

$1,244.76

Best Price Guarantee!
248PumpPoints

Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.

Item: C100-BPP-GNPN-G70

Overview
Series Info
Reviews
Literature/Manuals
Repair Parts

C100-BPP-GNPN-G70

Air Inlet	1/4" FNPT
Connections / Discharge (Inches)	1"
Connection Type	BSPT
Diaphragm	Bunalast
Fluid Port	Default (Suction Center Rear / Discharge Center Rear)
Inlet	1"
Material	Polypropylene
Maximum Flow (GPM)	40 GPM

Maximum Pressure (PSI)	100 PSI
Max Suction Lift	15 ft-H2O (4.6 m-H2O) Dry, 26 ft-H2O (7.9 m-H2O) Wet
Product Notes	Stainless Steel Hardware, Standard Muffler
Size	C100
Solids (Inches)	1/4"
Valve Balls	Buna-N
Valve / Seat / O-Ring	Polypropylene Valve Seat

Specialty Diaphragm Pumps Information

MAX‑PASS® S Series — Solids‑Handling Architecture

The MAX‑PASS® S Series incorporates a high‑flow, obstruction‑resistant internal geometry designed to move suspended solids without clogging or performance degradation. Its flow‑through design reduces shear, minimizes pulsation, and maintains consistent volumetric output across varying viscosities.

Key Technical Characteristics

Flow‑through solids‑handling chamber for reduced blockage
Optimized check‑valve geometry for improved particulate passage
Available in plastic or metal wetted materials
Suitable for abrasive, slurry, and high‑particulate applications

Available Models

Plastic Pumps

S038 (3/8") — Compact footprint for low‑flow dosing and transfer
S050 (1/2") — General‑purpose solids‑handling performance
S100 (1") — High‑flow configuration for demanding process lines

Metal Pumps

S050 (1/2") — Enhanced durability for aggressive or high‑pressure environments
S100 (1") — Industrial‑grade construction for continuous‑duty operation

Legacy Plastic Pumps — Proven Chemical Compatibility

All‑Flo’s legacy plastic pumps provide stable performance in applications requiring corrosion resistance, low weight, and compatibility with a broad range of process chemicals. These models are widely used in chemical dosing, wastewater treatment, and general fluid transfer.
