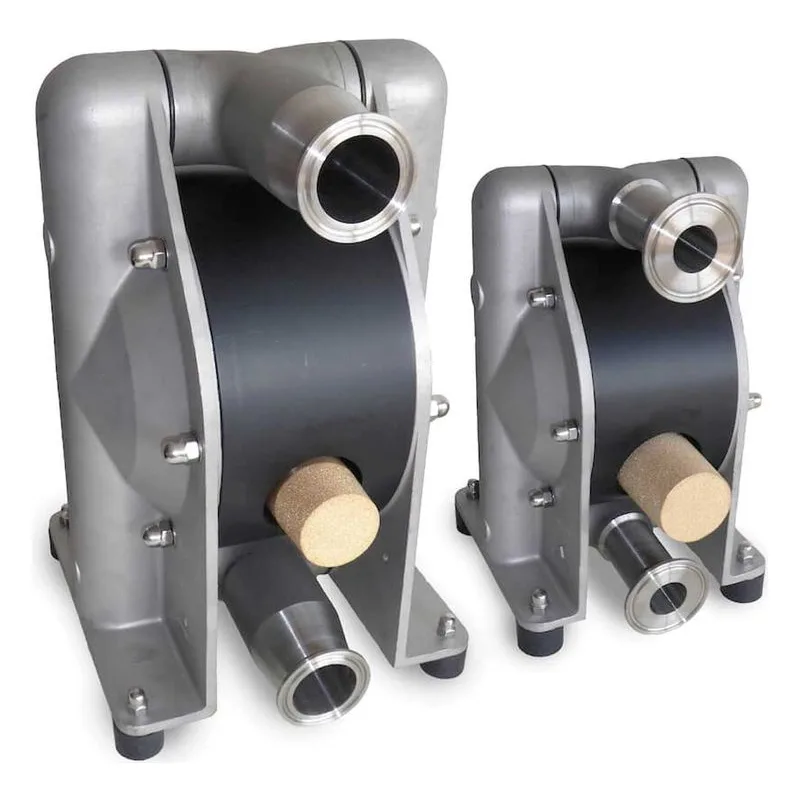

Image shown may not be actual product
G200-TJ3-PTXT-GFP
All-Flo G200-TJ3-PTXT-GFP G Series G200 Bolted Metal 2" All-Pur Food Grade Air Operated Double-Diaphragm AODD Pump. Suction Center Rear / Discharge Center Rear, 2" Tri-Clamp Connections. Conductive Polyethylene Air Section, Cast 316 SS Liquid Section, Integral-PTFE Diaphragms, PTFE Valve Balls & O-Rings. 106 gpm (400 lpm) Maximum Flow, 11/20" (14 mm) Max Solids.
$10,434.50
- Best Price Guarantee!
- 2086PumpPoints
Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.
- Overview
- Reviews
- Literature/Manuals
G200-TJ3-PTXT-GFP
All-Flo G200-TJ3-PTXT-GFP G Series G200 Bolted Metal 2" All-Pur Food Grade Air Operated Double-Diaphragm AODD Pump. Suction Center Rear / Discharge Center Rear, 2" Tri-Clamp Connections. Conductive Polyethylene Air Section, Cast 316 SS Liquid Section, Integral-PTFE Diaphragms, PTFE Valve Balls & O-Rings. 106 gpm (400 lpm) Maximum Flow, 11/20" (14 mm) Max Solids.
| Air Chamber | Conductive Polyethylene |
| Air Inlet | 1/4" FNPT |
| Air Supply Pressure | 100 psi (7 bar) Maximum |
| Base Model Number | G200 |
| Configuration | Suction Center Rear / Discharge Center Rear |
| Connection Type | Tri-Clamp |
| Construction | Bolted |
| Diaphragm | Integral PTFE |
| Discharge NPT (Inches) | 2" |
| Material | PTFE |
| Maximum Flow (GPM) | 106 gpm (400 lpm) |
| Max Suction Lift | Dry: 6.6 ft (2 m); Wet: 29.5 ft (9 m) |
| Model Series | G Series |
| Other Factors | USP VI Certification |
| Product Notes | Stainless Steel Hardware, Standard Muffler, Grounding Lug Installed; Grounding M6 Port (ATEX Models) |
| Pump Size | 2" |
| Quick Specs | ALL-FLO MODEL G200 2" USP VI |
| Solids (Inches) | 11/20" (14 mm) |
| Suction NPT (Inches) | 2" |
| Valve Balls | PTFE |
| Valve / Seat / O-Ring | No Seat Seat / PTFE O-Rings |
| Wetted Parts | Cast 316 SS |
