F200-T3E-HB3B-S70

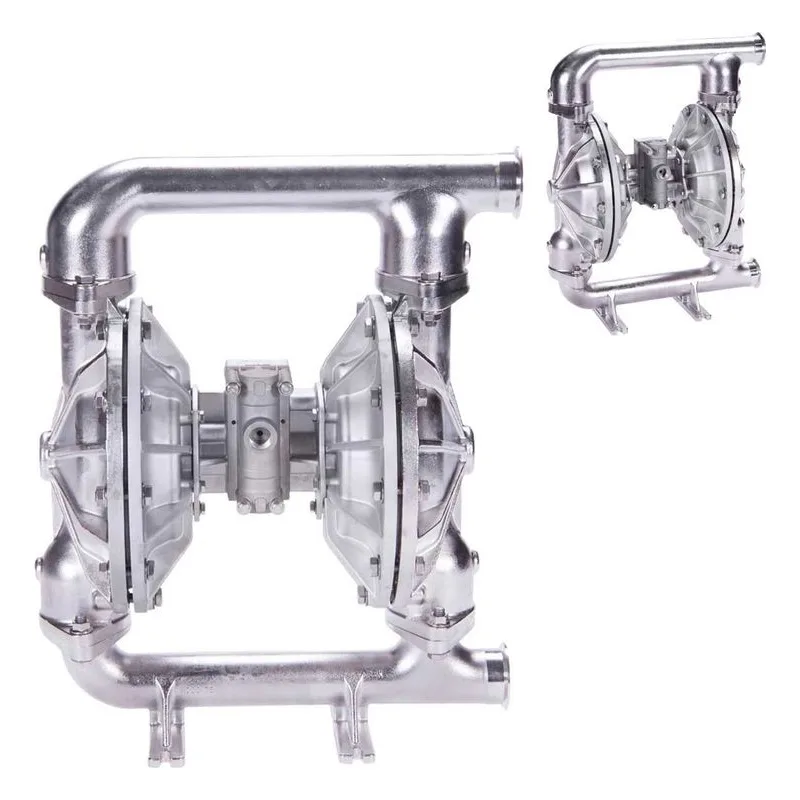

Image shown may not be actual product

F200-T3E-HB3B-S70

0 reviews

All-Flo F200-T3E-HB3B-S70 F Series F200 Bolted Metal 2" FDA Air Operated Double-Diaphragm AODD Pump. Suction/Discharge Right, 2-1/2" Tri-Clamp Connections. 316 Stainless Steel Air Section, Passivated 316 SS Liquid Section, Hytrel (FDA) Diaphragms, Stainless Steel Seats, Buna-N (FDA) Valve Balls & O-Rings. 190 gpm (719 lpm) Maximum Flow, 1/4" (6.4 mm) Max Solids. Wet End Repair Kit FWE-200-HB3B, Air End Kit FAK-200-3 Available to order.

$7,717.02

Best Price Guarantee!
1543PumpPoints

Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.

Item: F200-T3E-HB3B-S70

Overview
Reviews
Literature/Manuals
Repair Parts

F200-T3E-HB3B-S70

Air Chamber	316 Stainless Steel
Air Inlet	3/4" FNPT
Air Supply Pressure	120 psi (8.3 bar) Maximum
Base Model Number	F200
Configuration	Suction/Discharge Right
Connection Type	Tri-Clamp
Construction	Bolted
Diaphragm	Hytrel (FDA)
Discharge NPT (Inches)	2-1/2"
Material	Nitrile Buna-N
Maximum Flow (GPM)	190 gpm (719 lpm)

Max Suction Lift	Dry: 24.4 ft (7.4 m); Wet: 31.7 ft (9.7 m)
Model Series	F Series
Other Factors	No Special Options
Product Notes	Stainless Steel Hardware, Plastic Muffler
Pump Size	2"
Solids (Inches)	1/4" (6.4 mm)
Suction NPT (Inches)	2-1/2"
Valve Balls	Buna-N (FDA)
Valve / Seat / O-Ring	Stainless Steel Seat / Buna-N (FDA) O-Rings
Wetted Parts	Passivated 316 SS
