F150-TAE-HT3B-S70

Image shown may not be actual product

F150-TAE-HT3B-S70

0 reviews

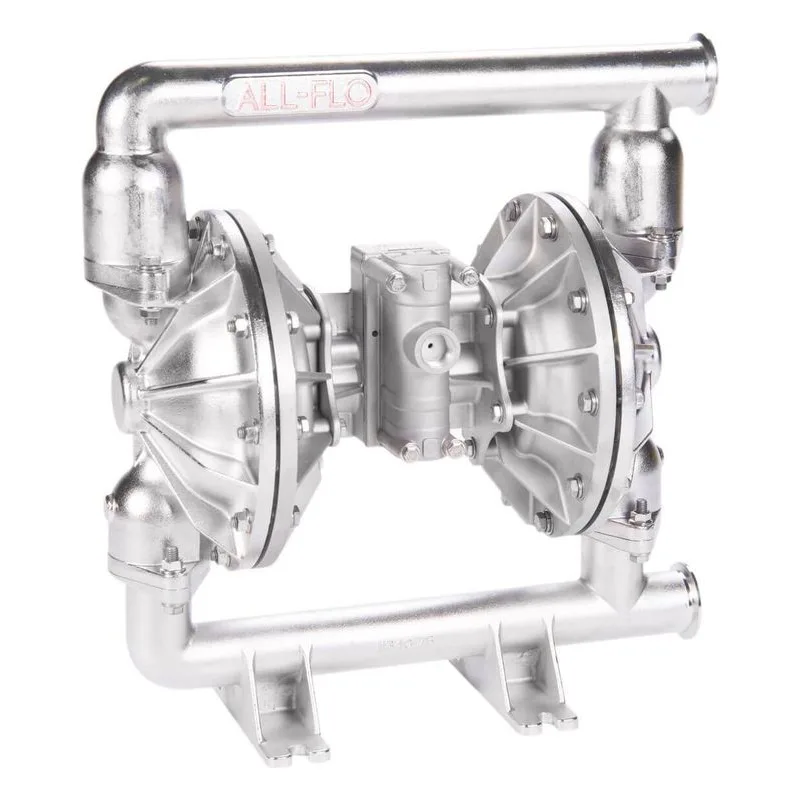

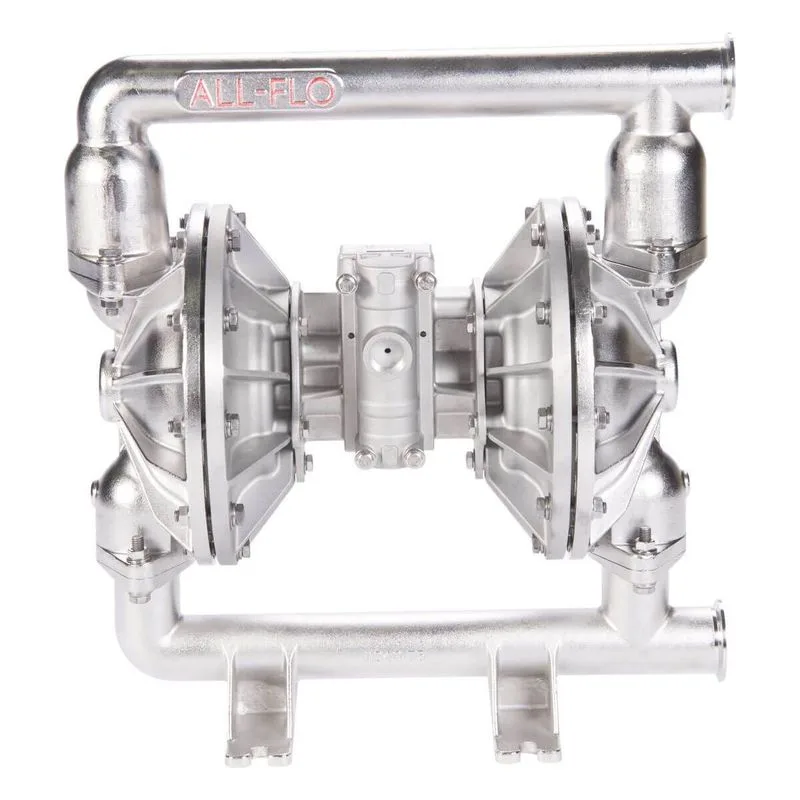

All-Pro F150-TAE-HT3B-S70 150 FDA / Hygienic Diaphragm Pumps. 115 GPM Maximum Flow Rate with a Max Pressure of120 PSI. Capable of handling 1/4" Diameter Solids with a 2" Liquid Inlet and a 2" Liquid Discharge and 22 ft-H2O (6.7 m-H2O) Dry, 31 ft-H2O (9.4 m-H2O) Wet Maximum Lift. Build Materials consist of a Aluminum Air Section, Hytrel® (FDA) Diaphragm, PTFE Valve/Ball and Buna-N (FDA) O-Rings.

$4,700.24

Best Price Guarantee!
939PumpPoints

Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.

Item: F150-TAE-HT3B-S70

Overview
Reviews
Literature/Manuals
Repair Parts

F150-TAE-HT3B-S70

Air Inlet	3/4" FNPT
Connections / Discharge (Inches)	2"
Connection Type	Tri-Clamp
Diaphragm	Hytrel® (FDA)
Fluid Port	Standard (Suction Right / Discharge Right)
Inlet	2"
Material	Passivated 316 Stainless Steel
Maximum Flow (GPM)	115 GPM

Maximum Pressure (PSI)	120 PSI
Max Suction Lift	22 ft-H2O (6.7 m-H2O) Dry, 31 ft-H2O (9.4 m-H2O) Wet
Product Notes	Standard (Stainless Steel Hardware, Plastic Muffler)
Size	150
Solids (Inches)	1/4"
Valve Balls	PTFE
Valve / Seat / O-Ring	Stainless Steel Valve Seat

0 Reviews

Add a Review

You need to sign in to add a review.

Type	Title		Link
	All-Flo F150 Metallic AODD Specifications Sheet Brochure		View
	All-Flo F150 Metallic AODD Exploded View Brochure		View
	All-Flo F150 Metallic AODD IOM Manual		View
