F100-TAE-HB3B-S70

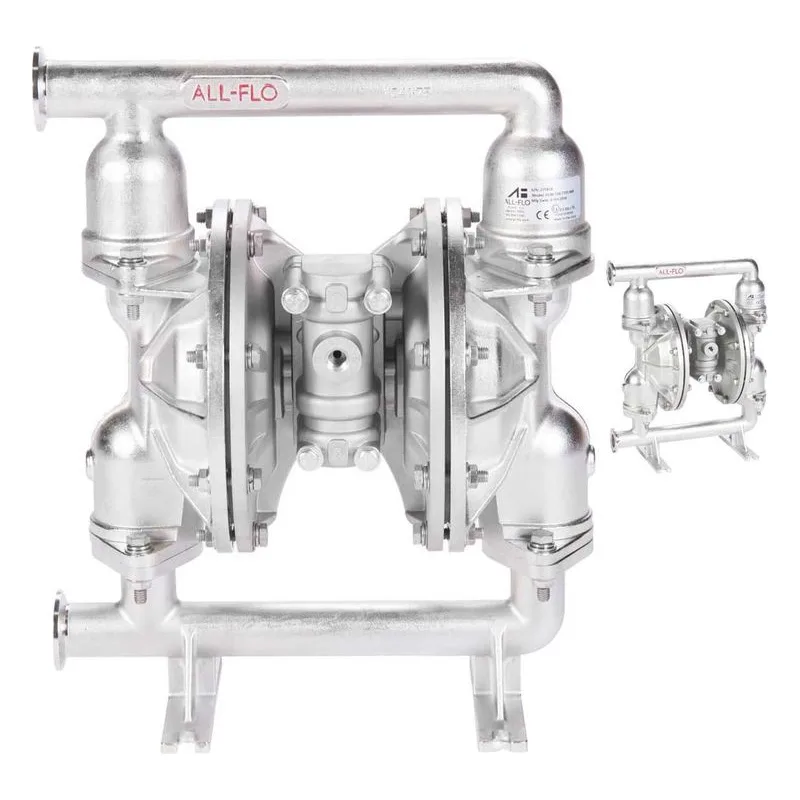

Image shown may not be actual product

F100-TAE-HB3B-S70

0 reviews

All-Flo F100-TAE-HB3B-S70 F Series F100 Bolted Metal 1" FDA Air Operated Double-Diaphragm AODD Pump. Suction/Discharge Right, 1-1/2" Tri-Clamp Connections. Aluminum Air Section, Passivated 316 SS Liquid Section, Hytrel (FDA) Diaphragms, Buna-N (FDA) Valve Balls & O-Rings, Stainless Steel Seats. 48 gpm (182 lpm) Maximum Flow, 1/4" (6.4 mm) Max Solids. Wet End Repair Kit FWE-100-HB3B, Air End Kit FAK-100-A Available to order.

$3,225.06

Best Price Guarantee!
644PumpPoints

Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.

Item: F100-TAE-HB3B-S70

Overview
Reviews
Literature/Manuals
Repair Parts

F100-TAE-HB3B-S70

Air Chamber	Aluminum
Air Inlet	1/2" FNPT
Air Supply Pressure	120 psi (8.3 bar) Maximum
Base Model Number	F100
Configuration	Suction/Discharge Right
Connection Type	Tri-Clamp
Construction	Bolted
Diaphragm	Hytrel (FDA)
Discharge NPT (Inches)	1-1/2"
Material	Polypropylene
Maximum Flow (GPM)	48 gpm (182 lpm)

Max Suction Lift	Dry: 17 ft (5.2 m); Wet: 30 ft (9.1 m)
Model Series	F Series
Other Factors	No Special Options
Product Notes	Stainless Steel Hardware, Plastic Muffler
Pump Size	1"
Solids (Inches)	1/4" (6.4 mm)
Suction NPT (Inches)	1-1/2"
Valve Balls	Buna-N (FDA)
Valve / Seat / O-Ring	Stainless Steel Seat / Buna-N (FDA) O-Rings
Wetted Parts	Passivated 316 SS
