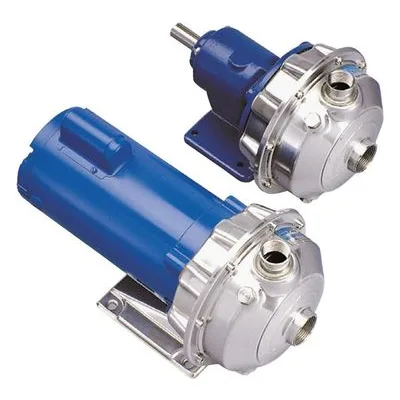

Goulds Water Technology Pumps Models NPE (close-coupled) and NPE-F (frame mounted) are end suction, single stage centrifugal pumps for general liquid transfer service, booster applications, etc. Liquid-end construction is all AISI Type 316 stainless steel, stamped and welded. Impellers are fully enclosed, non-trimable to intermediate diameters. Casings are fitted with a diffuser for efficiency and for negligible radial shaft loading. Close-coupled units have NEMA 48J or 56J motors with C-face mounting and threaded shaft extension. Framemounted units can be coupled to motors through a spacer coupling, or belt driven.
Search Results
(4,137 results)
Sort & Filter
2
1ST1G9B4
Goulds Water Technology
Goulds Water Technology 1ST1G9B4 NPE Stainless Steel Close-Coupled End Suction Centrifugal Pump by Xylem. 2 HP, 208-230/460 Volt, 3Ph (Three Phase), 60 Hz, 2 Pole, 3500 RPM Motor with TE PE (Totally Enclosed Fan Cooled Premium Efficient) Enclosure. 1-1/4" NPT Suction / 1" NPT Discharge, 5.75" (5-3/4") Impeller, Carbon / Silicon Carbide / Viton Mechanical Shaft Seal. Capacities to 170 GPM, Heads to 150', 125 PSIG (9 bars) Maximum Working Pressure.
2ST1H9F4
Goulds Water Technology
Goulds Water Technology 2ST1H9F4 NPE Stainless Steel Close-Coupled End Suction Centrifugal Pump by Xylem. 3 HP, 208-230/460 Volt, 3Ph (Three Phase), 60 Hz, 2 Pole, 3500 RPM Motor with TE PE (Totally Enclosed Fan Cooled Premium Efficient) Enclosure. 1-1/2" NPT Suction / 1-1/4" NPT Discharge, 4.875" (4-7/8") Impeller, Carbon / Silicon Carbide / Viton Mechanical Shaft Seal. Capacities to 170 GPM, Heads to 150', 125 PSIG (9 bars) Maximum Working Pressure.
1ST1D5D4
Goulds Water Technology
Goulds Water Technology 1ST1D5D4 NPE Stainless Steel Close-Coupled End Suction Centrifugal Pump by Xylem. 3/4 HP, 208-230/460 Volt, 3Ph (Three Phase), 60 Hz, 2 Pole, 3500 RPM Motor with TEFC (Totally Enclosed Fan Cooled) Enclosure. 1-1/4" NPT Suction / 1" NPT Discharge, 4.75" (4-3/4") Impeller, Carbon / Silicon Carbide / Viton Mechanical Shaft Seal. Capacities to 170 GPM, Heads to 150', 125 PSIG (9 bars) Maximum Working Pressure.
1ST1G2A4
Goulds Water Technology
Goulds Water Technology 1ST1G2A4 NPE Stainless Steel Close-Coupled End Suction Centrifugal Pump by Xylem. 2 HP, 208-230/460 Volt, 3Ph (Three Phase), 60 Hz, 2 Pole, 3500 RPM Motor with ODP (Open Drip Proof) Enclosure. 1-1/4" NPT Suction / 1" NPT Discharge, 6.125" (6-1/8") Impeller, Carbon / Silicon Carbide / Viton Mechanical Shaft Seal. Capacities to 170 GPM, Heads to 150', 125 PSIG (9 bars) Maximum Working Pressure.
3ST1H4E4
Goulds Water Technology
Goulds Water Technology 3ST1H4E4 NPE Stainless Steel Close-Coupled End Suction Centrifugal Pump by Xylem. 3 HP, 230 Volt, 1Ph (Single Phase), 60 Hz, 2 Pole, 3500 RPM Motor with TEFC (Totally Enclosed Fan Cooled) Enclosure. 2" NPT Suction / 1-1/2" NPT Discharge, 4.375" (4-3/8") Impeller, Carbon / Silicon Carbide / Viton Mechanical Shaft Seal. Capacities to 170 GPM, Heads to 150', 125 PSIG (9 bars) Maximum Working Pressure.
2ST1J9B4
Goulds Water Technology
Goulds Water Technology 2ST1J9B4 NPE Stainless Steel Close-Coupled End Suction Centrifugal Pump by Xylem. 5 HP, 208-230/460 Volt, 3Ph (Three Phase), 60 Hz, 2 Pole, 3500 RPM Motor with TE PE (Totally Enclosed Fan Cooled Premium Efficient) Enclosure. 1-1/2" NPT Suction / 1-1/4" NPT Discharge, 5.94" (5-15/16") Impeller, Carbon / Silicon Carbide / Viton Mechanical Shaft Seal. Capacities to 170 GPM, Heads to 150', 125 PSIG (9 bars) Maximum Working Pressure.
1ST1G9A4
Goulds Water Technology
Goulds Water Technology 1ST1G9A4 NPE Stainless Steel Close-Coupled End Suction Centrifugal Pump by Xylem. 2 HP, 208-230/460 Volt, 3Ph (Three Phase), 60 Hz, 2 Pole, 3500 RPM Motor with TE PE (Totally Enclosed Fan Cooled Premium Efficient) Enclosure. 1-1/4" NPT Suction / 1" NPT Discharge, 6.125" (6-1/8") Impeller, Carbon / Silicon Carbide / Viton Mechanical Shaft Seal. Capacities to 170 GPM, Heads to 150', 125 PSIG (9 bars) Maximum Working Pressure.
2ST1H9D4
Goulds Water Technology
Goulds Water Technology 2ST1H9D4 NPE Stainless Steel Close-Coupled End Suction Centrifugal Pump by Xylem. 3 HP, 208-230/460 Volt, 3Ph (Three Phase), 60 Hz, 2 Pole, 3500 RPM Motor with TE PE (Totally Enclosed Fan Cooled Premium Efficient) Enclosure. 1-1/2" NPT Suction / 1-1/4" NPT Discharge, 5.34375" (5-11/32") Impeller, Carbon / Silicon Carbide / Viton Mechanical Shaft Seal. Capacities to 170 GPM, Heads to 150', 125 PSIG (9 bars) Maximum Working Pressure.
3ST1J2G4
Goulds Water Technology
Goulds Water Technology 3ST1J2G4 NPE Stainless Steel Close-Coupled End Suction Centrifugal Pump by Xylem. 5 HP, 208-230/460 Volt, 3Ph (Three Phase), 60 Hz, 2 Pole, 3500 RPM Motor with ODP (Open Drip Proof) Enclosure. 2" NPT Suction / 1-1/2" NPT Discharge, 3.625" (3-5/8") Impeller, Carbon / Silicon Carbide / Viton Mechanical Shaft Seal. Capacities to 170 GPM, Heads to 150', 125 PSIG (9 bars) Maximum Working Pressure.
1ST1E9C4
Goulds Water Technology
Goulds Water Technology 1ST1E9C4 NPE Stainless Steel Close-Coupled End Suction Centrifugal Pump by Xylem. 1 HP, 208-230/460 Volt, 3Ph (Three Phase), 60 Hz, 2 Pole, 3500 RPM Motor with TE PE (Totally Enclosed Fan Cooled Premium Efficient) Enclosure. 1-1/4" NPT Suction / 1" NPT Discharge, 5.1875" (5-3/16") Impeller, Carbon / Silicon Carbide / Viton Mechanical Shaft Seal. Capacities to 170 GPM, Heads to 150', 125 PSIG (9 bars) Maximum Working Pressure.
1ST1D4D4
Goulds Water Technology
Goulds Water Technology 1ST1D4D4 NPE Stainless Steel Close-Coupled End Suction Centrifugal Pump by Xylem. 3/4 HP, 115/230 Volt, 1Ph (Single Phase), 60 Hz, 2 Pole, 3500 RPM Motor with TEFC (Totally Enclosed Fan Cooled) Enclosure. 1-1/4" NPT Suction / 1" NPT Discharge, 4.75" (4-3/4") Impeller, Carbon / Silicon Carbide / Viton Mechanical Shaft Seal. Capacities to 170 GPM, Heads to 150', 125 PSIG (9 bars) Maximum Working Pressure.
1ST1E4C4
Goulds Water Technology
Goulds Water Technology 1ST1E4C4 NPE Stainless Steel Close-Coupled End Suction Centrifugal Pump by Xylem. 1 HP, 115/230 Volt, 1Ph (Single Phase), 60 Hz, 2 Pole, 3500 RPM Motor with TEFC (Totally Enclosed Fan Cooled) Enclosure. 1-1/4" NPT Suction / 1" NPT Discharge, 5.1875" (5-3/16") Impeller, Carbon / Silicon Carbide / Viton Mechanical Shaft Seal. Capacities to 170 GPM, Heads to 150', 125 PSIG (9 bars) Maximum Working Pressure.
