Image shown may not be actual product

B66899

0 reviews

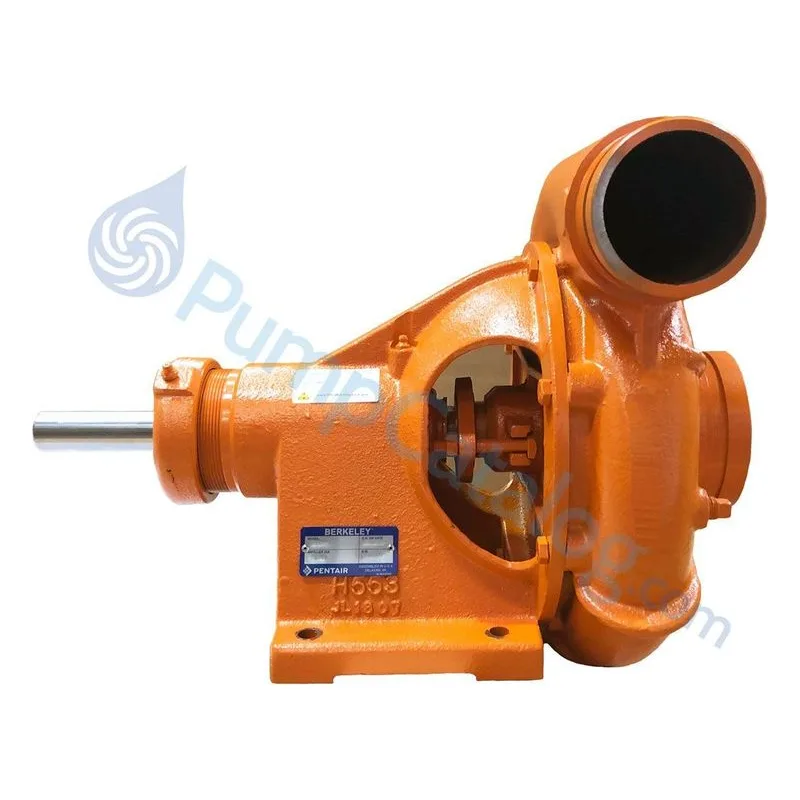

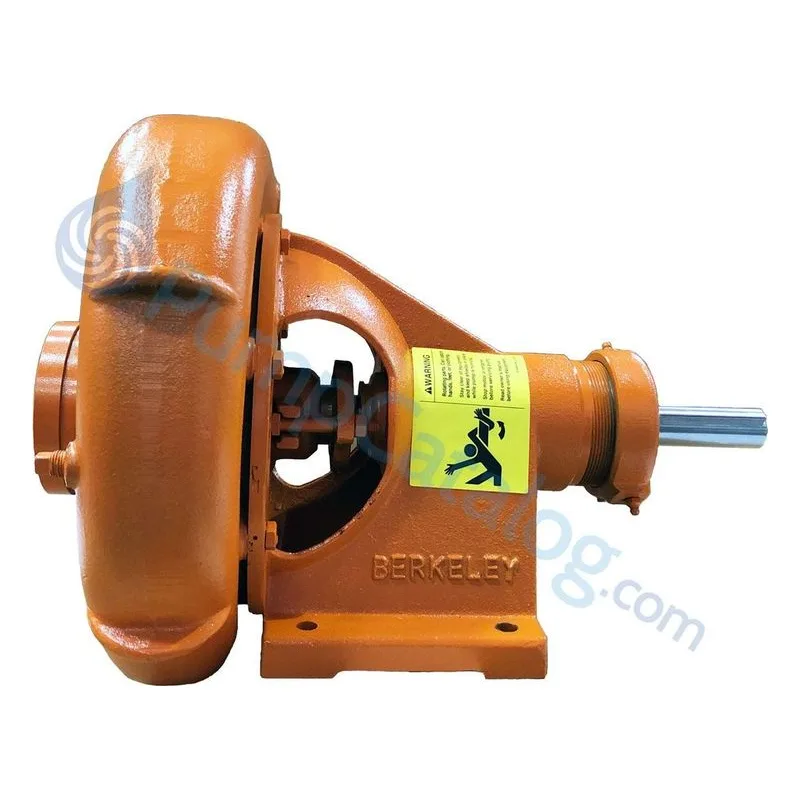

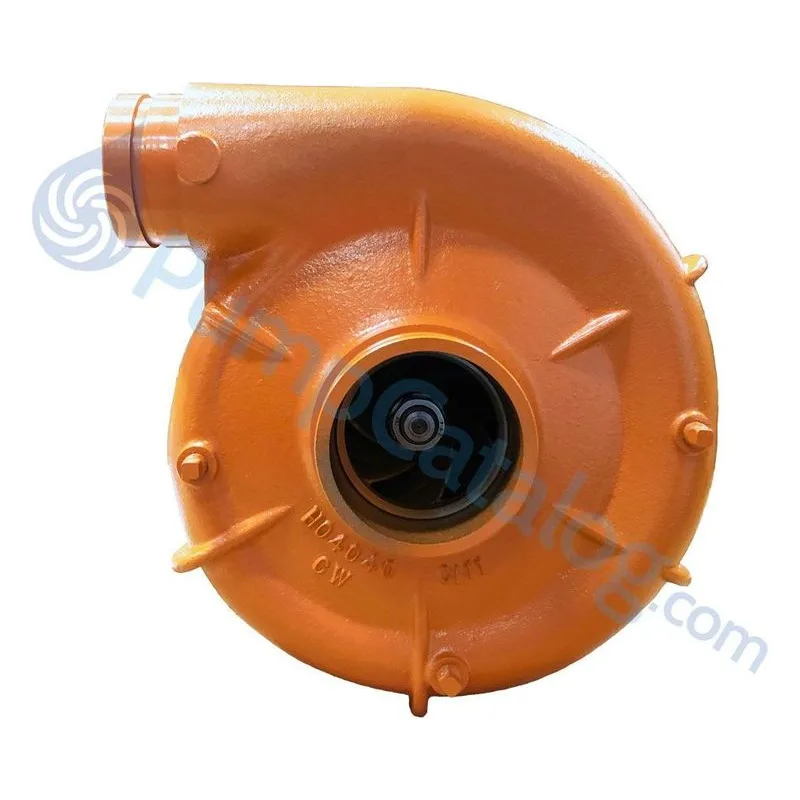

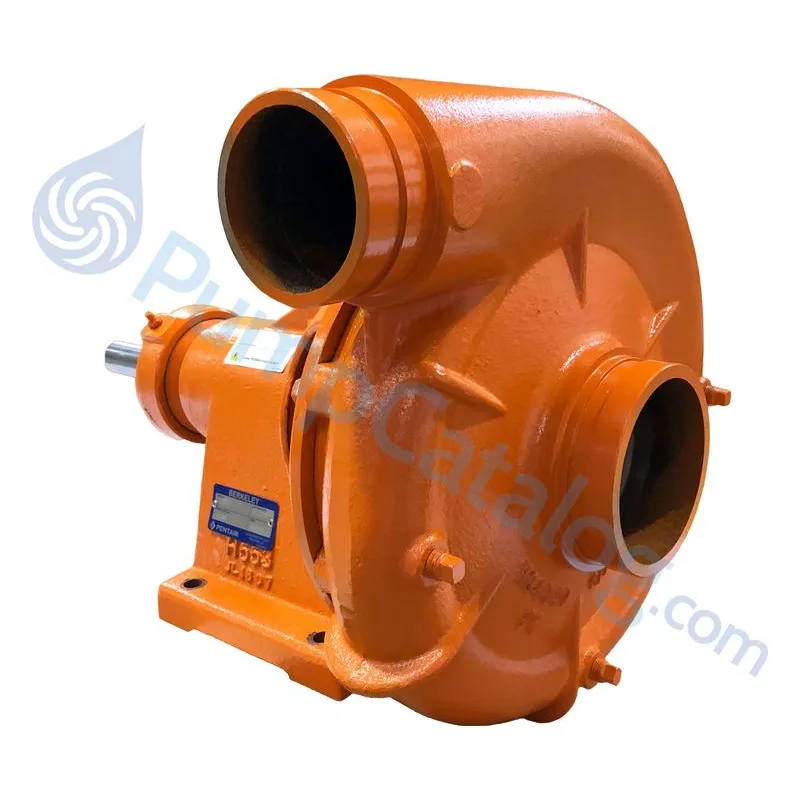

Berkeley Pumps Model B66899 Type B Series Water Truck Pump, Single Stage, Belt Coupling Drive Centrifugal Pump, Cast Iron Impeller, Packing Shaft Seal, B3ZRM Model, 3 x 4 x 9 M Standard Frame Pump Size, VICTAULIC Volute Connection

Pump Catalog Price
Retail Price: $4,142.40
How come you don't show price?
Due to our price being lower, you have to add the product to your cart to see your discounted price.
The manufacturer of this product has instituted a Minimum Advertised Price or "MAP" Pricing policy. This dictates the price we are allowed to advertise.

Item: B66899 | Model #: B3ZRM

Repair Parts Exploded View Diagram

Overview
Series Info
Reviews
Literature/Manuals
Repair Parts

B66899

Actual Weight	95
Impeller Material	Cast Iron
Model Number	B3ZRM
Model Series	Z
Pump Size	3 x 4 x 9 M Standard Frame

Rotation	CW - Clockwise
Shaft Seal Type	Packed Stuffing Box
Volute Connection	VICTAULIC

B3ZRM Frame Mount Centrifugal (Water Truck Pumps) Series Information

Features & Benefits
Berkeley B3ZRM Type B Frame Mounted Water Truck Pump Key Features & Benefits Volute Case Incorporates Precise Geometric Design for Increased Hydraulic Efficiency Thick-Walled Close-Grained Cast Iron to Handle the Stresses of Everyday Use Back Pull-Out Design Allows Easy Removal And Service Without Disturbing Piping Connections Enclosed Impeller Designed and Machined to Optimize Performance and Operating Efficiencies Discharge May Be Rotated To Any of Four Positions for Piping Convenience

Features & Benefits

Berkeley B3ZRM Type B Frame Mounted Water Truck Pump Key Features & Benefits
Volute Case Incorporates Precise Geometric Design for Increased Hydraulic Efficiency
Thick-Walled Close-Grained Cast Iron to Handle the Stresses of Everyday Use
Back Pull-Out Design Allows Easy Removal And Service Without Disturbing Piping Connections
Enclosed Impeller Designed and Machined to Optimize Performance and Operating Efficiencies
Discharge May Be Rotated To Any of Four Positions for Piping Convenience

0 Reviews

Add a Review

You need to sign in to add a review.

Type	Title		Link
	Berkeley Type B Series Centrifugal Pump Dimensions		View
	Type B Pump Performance Curves		View
	B3ZRM Performance Curves		View
	Berkeley Type B Frame Mounted Centrifugal Pump Owner's Manual		View
	Berkeley Type B Pump Rotation (CW/CCW), Mechanical Seal / Packing		View
	Berkeley Type B Frame Mount Centrifugal Pump Replacement Shaft Kits		View
	B66899 & B66895 Parts Breakdown Exploded View		View
