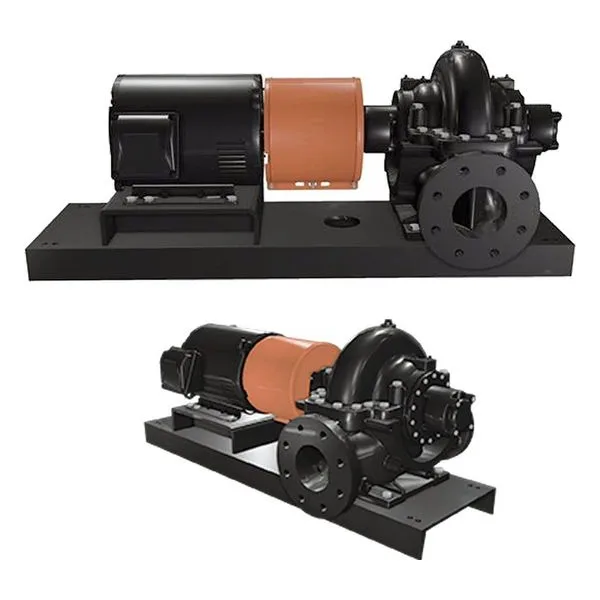

KP (Horizontal Split Case)

The KP is a single-stage, between bearings, split case pump.

Built to deliver up to 20,000 GPM (gallons per minute). High capacity single stage KP pump series are ideal for the toughest applications. PACO's KP models are compact with a robust bearing housing. There is a 360-degree machined register fit, which limits shaft deflection. This optimizes the pump alignment. Models available in multiple material types and options. The KP is extremely customizable and ideal for special custom tailored, pumping application challenges.

Applications

• Chilled Water
• Condensed Water
• Service Water
• Water Distribution
• Drip Irrigation & Micro Spray
• Frost Protection
• Pivot
• Agricultural Surface Water
• District Cooling
• District Heating
• District Energy
• Cooling
• Industrial Heating
• Process Liquids Transfer
• Industrial Process Water Treatment
• Wash and Clean
• Industrial Wastewater Treatment & Reuse
• Municipal Surface Water
• Municipal Water Transportation
• Central Plant (Heating / Cooling)

Key Features & Benefits

• Hydraulic double volute design reduces radial loads, internal recirculation and turbulence, resulting in a longer pump life span and a higher operation efficiency.
• Axially split design allows for quick removal of the top casing and access to pump components (bearings, wear rings, impeller, and shaft seal) without disturbing the motor or pipe work, saving time and money.
• Standard bronze wear rings protect pump from erosion and permit simple maintenance of proper running clearances.
• Horizontal, space saving design eliminates need for distance around pump for maintenance access.
• Highly customizable construction including choices of case material with numerous impeller and shaft seal options.
• Integrally cast suction baffles reduce suction recirculation loss and ensure even flow distribution and quiet, vibration-free operation. Suction chamber inlet configuration also increases hydraulic efficiency and lowers net positive suction head requirements.
• Independent bearing housing design allows access to the pump components without removing the top half of the casing.
• Extended pump range up to 20,000 gallons-per-minute to serve all your high flow applications.
• Francis Vane Impeller design with extended vanes and enlarged eye increases efficiency and reduces vibration and noise.
• NSF/50 certifications (available upon request).

PACO's KP single stage, split case horizontal pump is a volute pump between bearing centrifugal. Easy removal of the casing top allows for qucik and painless access to the pump parts. This is due to the axially split design. This is a huge benefit for anyone who has to access pump components such as bearings, wear rings, impeller, and shaft seal. Save time and money without having to disrupt the motor or piping. Maintenence is a breeze thanks to the bearing housing being independent, as a result, top casing does not have to be removed. The radial load on the pump shaft has been reduced due to the volute being a double design not to meniton being quiet while operational without all the vibration. This allows longer optimal performance and reducced cost on needing replacement parts.
