M50 | L50 Series

M50 | L50 Regenerative Turbine Pumps

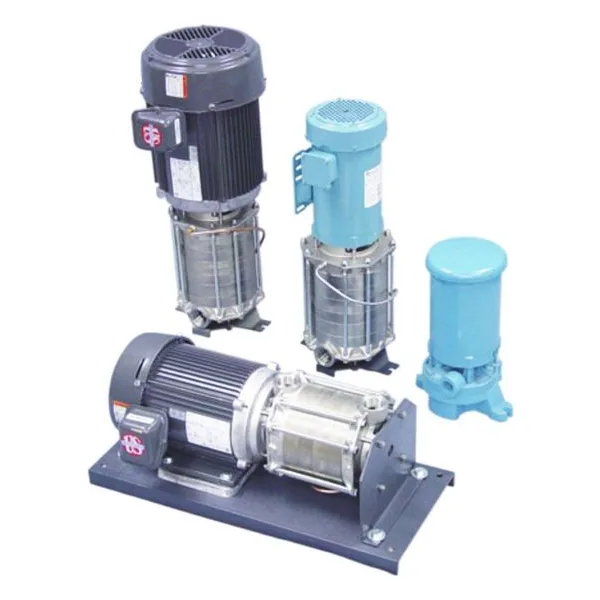

MTH M50 & L50 pump series are vertical, base mount & horizontal pedestal mounted multi-stage regenerative turbine pumps. This series represent the most economical high performance alternative for low flow (2 to 38 GPM) applications involving moderate to high pressures (heads to 2300 feet). By combining the latest concepts in hydraulic turbine pump design with precision computer controlled manufacturing, M50 & L50 Series pumps deliver high efficiency operation even at low NPSH. Costs are controlled by efficient manufacturing processes, use of standard motors, and highly optimized pump designs. Maintenance costs are kept to a minimum by combining an easily serviceable design with the use of high quality components to provide long life.

Features

• Mecahnical Seals  - Buna N Seals on bronze fitted pumps. Optional seals available.
• 1,000 PSI (Pounds Per Square Inch) Case Working Pressure - Maximum Case Strength
• Volitile Fluid Handling - Handles vapors up to 20% by volume to minimize vapor lock.
• O-Ring Gaskets - Positive Sealing Assured.
• Motors - 56C Face Standard Motors are used up to 3 HP. 5 HP and above are TEFC on vertical base units.
• Non-Cavitating - MTH's M50 & L50 pumps can be operated under adverse inlet conditions without audible or mesurable cavitation.
• Low NPSH - New inlet design along with the L50 series inducer sytle pumps offer excellent fluid handling with low inlet head conditions.
