TPM1000 Replaces AC-5C-MD

TPM1000 Series Information

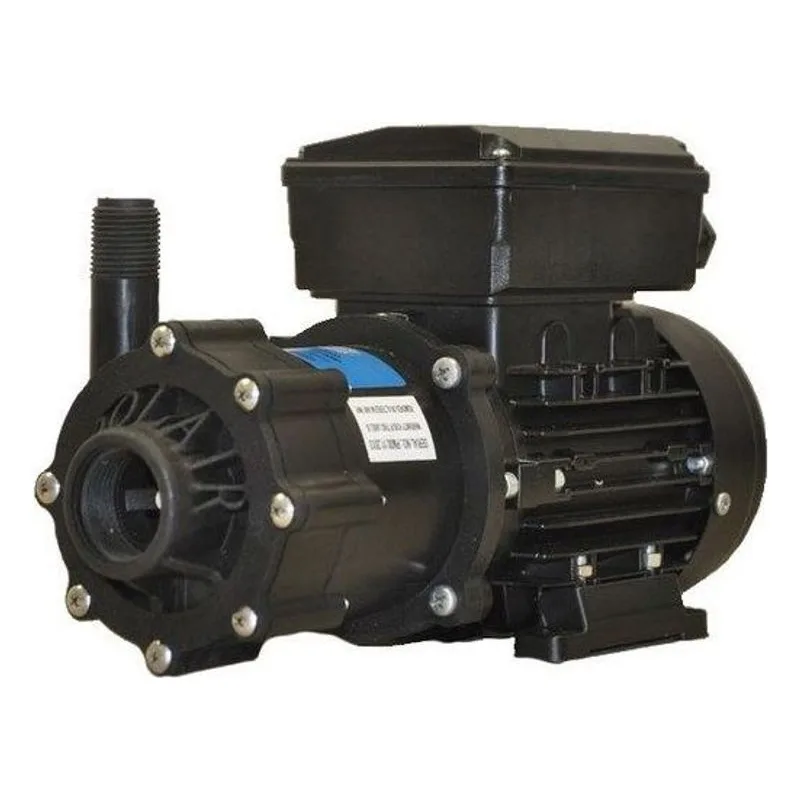

The Koolair TPM1000-115/230 TEFC (Totally Enclosed Fan Cooled Motor Enclosure Model) is a seal-less centrifugal magnetic pump drive (10 lbs.) generating a maximum flow of 17 gallons per minute with a maximum head of 27 feet at 11.7 PSI.

The pump is dry run protected to withstand thermal overloads without failure. The pump end is protected from thermal meltdown in a run dry event.

Materials exposed to the solution (wet end) are Reinforced Polypropylene, Buna N, Cupro Nickel, Ceramic, and Ceramic Magnet.

The inlet connection is a 1” female pipe thread and the outlet is ½” male pipe thread.
Includes fully integrated, heavy duty base.

The motor is a 1 Phase 115V, 1/8 Horsepower motor, running on either 50 or 60 HZ

Maximum internal pressure is 25 PSI and the maximum liquid temperature is 130 Fahrenheit or 54 Celsius.

ISO 8846 Marine Ignition Protected
