$254 - PM500-115 Replaces LC-3CP-MD - Call 305-209-3786 to place an order.

  • Koolair Pump - PM500 115V

Image shown may not be actual product

Koolair Pumps

$254 - PM500-115 Replaces LC-3CP-MD - Call 305-209-3786 to place an order.

2 reviews

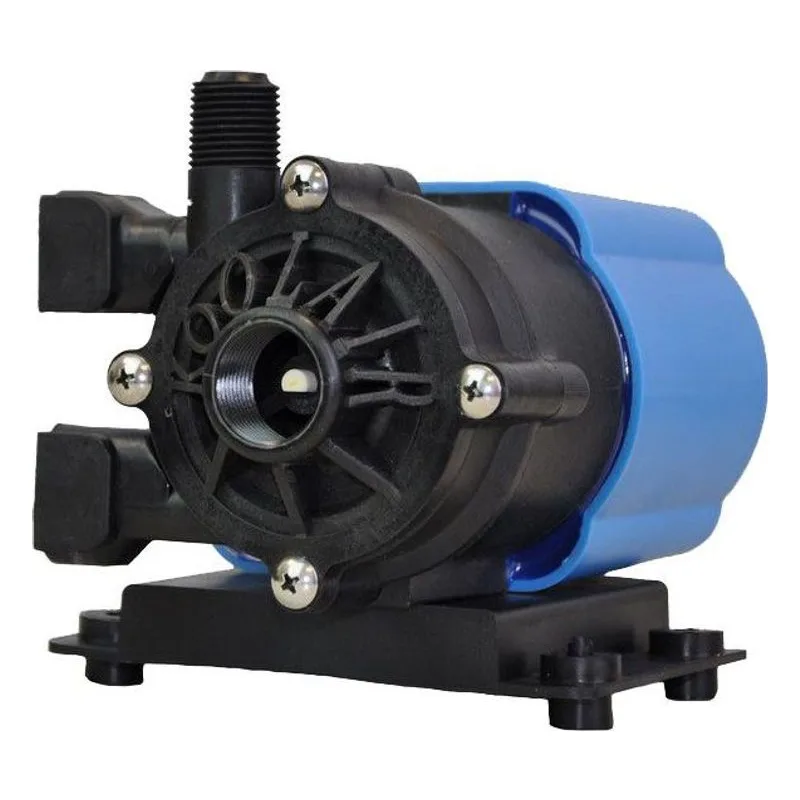

Call 305-209-3786 to place an order. KoolAir PM500-115 Magnetic Drive Pump is most commonly used for marine air conditioning and fountains. Run Dry Protection! Replaces March LC-3CP-MD Pump 115V, 3/4" FPT Inlet, 1/2" MPT Outlet, 60 Hz, 115V, 1 Phase, 1/20 HP, 3450 RPM, 8.6 GPM Max Flow, 19 Feet Max Head, 25 PSI Max Internal Pressure.

Item: PM500 (115V) | Part #: PM500-115 | Model #: March LC-3CP-MD Pump Replacement

PM500 (115V)

Call 305-209-3786 to place an order. KoolAir PM500-115 Magnetic Drive Pump is most commonly used for marine air conditioning and fountains. Run Dry Protection! Replaces March LC-3CP-MD Pump 115V, 3/4" FPT Inlet, 1/2" MPT Outlet, 60 Hz, 115V, 1 Phase, 1/20 HP, 3450 RPM, 8.6 GPM Max Flow, 19 Feet Max Head, 25 PSI Max Internal Pressure.

Connections / Discharge (Inches)3/4" FPT Inlet, 1/2" MPT Outlet
Heads To (Feet)19
HP0.125
Hz50/60
Maximum Flow (GPM)8.5 GPM / 32.2 LPM
Model NumberMarch LC-3CP-MD Pump Replacement
Part NumberPM500-115
Product NotesISO 8846 Marine Ignition Protected, NMMA, USCG and SAE J1171:2016
Quick SpecsCall 305-209-3786 to place an order.
Voltage115

PM500 Series Information

The Koolair PM500-115  & PM500-230 are completely submersible seal-less centrifugal magnetic pump drive (10 lbs.) generating a maximum flow of 8.5 gallons per minute with a maximum head of 19 feet at 8.2 PSI.

The pump is dry run protected to withstand thermal overloads without failure. When cooled, the pump will resume operating normally.

Materials exposed to the solution (wet end) are Reinforced Polypropylene, Buna N, Cupro Nickel, Ceramic, and Ceramic Magnet. When submerged, Epoxy, Stainless Steel, Polysulfone, and the Cord will also come in contact with the solution.

The inlet connection is a ¾” female pipe thread and the outlet is ½” male pipe thread.

Includes fully integrated, heavy duty marine base, as well as the original base.

The motor options are 1 Phase 115V or 230V, .05 Horsepower motor, running on either 50 or 60 HZ

Maximum internal pressure is 25 PSI and the maximum liquid temperature is 130 Fahrenheit or 54 Celsius.

ISO 8846 Marine Ignition Protected



Categories

2 Reviews

  • Nate Novak
    Nate Novak
    5 years, 8 months ago

    Drop in Replacement no problem to install!

  • Joe Martinez
    Joe Martinez
    6 years, 4 months ago

    Quick and easy installation!

Add a Review

You need to sign in to add a review.

TypeTitleLink

PM500 Datasheet, Curves & Repair Parts Breakdown 2022

View

Repair Parts for $254 - PM500-115 Replaces LC-3CP-MD - Call 305-209-3786 to place an order.

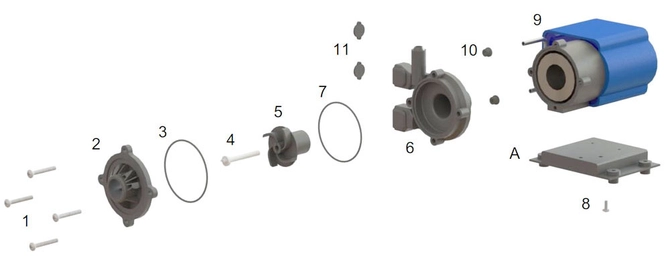

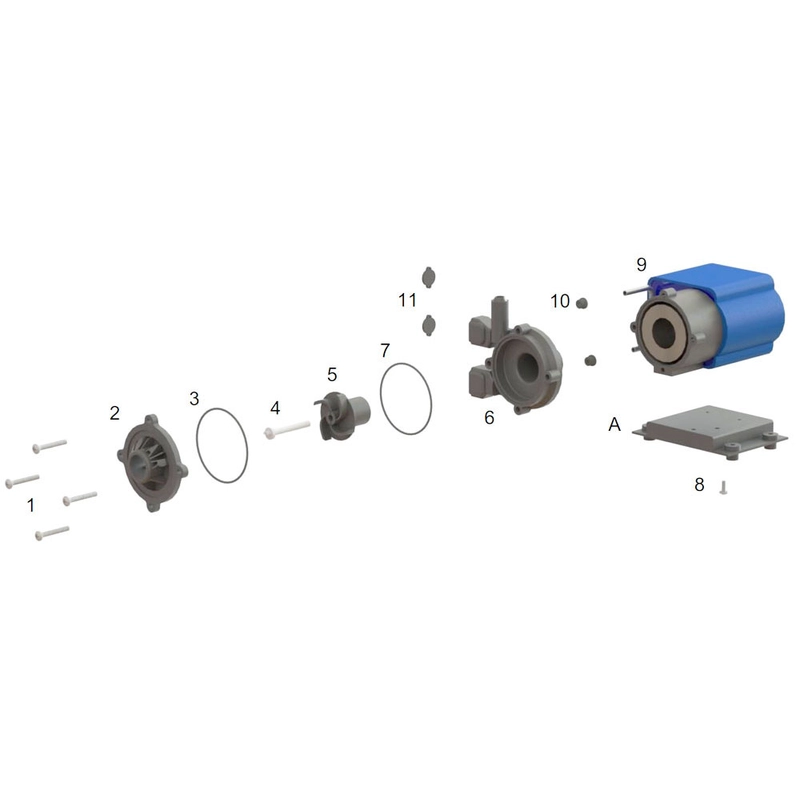

  • Koolair Pump PM500 Repair Parts Breakdown
Productqty.shippingprice
PM500-WE

$47.50 - PM500-WE - Call 305-209-3786 to place an order.

Ships in Call 305-209-3786 to place an order. Call for pricing
KA500-21

KA500-21 - Call 305-209-3786 for information.

Ships in Call 305-209-3786 for information. Call for pricing
KA500-22

KA500-22 - Call 305-209-3786 for information.

Ships in Call 305-209-3786 for information. Call for pricing
KA500-23

$0.66 - KA500-23 - Call 305-209-3786 to place an order.

Ships in Call 305-209-3786 to place an order. Call for pricing
KA500-24

KA500-24 - Call 305-209-3786 for information.

Ships in Call 305-209-3786 for information. Call for pricing
KA500-25

$19.80 - KA500-25 - Call 305-209-3786 to place an order.

Ships in Call 305-209-3786 to place an order. Call for pricing
KA500-26

KA500-26 - Call 305-209-3786 for information.

Ships in Call 305-209-3786 for information. Call for pricing
KA500-27

KA500-27 - Call 305-209-3786 for information.

Ships in Call 305-209-3786 for information. Call for pricing
KA500-28

KA500-28 - Call 305-209-3786 for information.

Ships in Call 305-209-3786 for information. Call for pricing
KA500-29

KA500-29 - Call 305-209-3786 for information.

Ships in Call 305-209-3786 for information. Call for pricing
KA500-30

KA500-30 - Call 305-209-3786 for information.

Ships in Call 305-209-3786 for information. Call for pricing
KA500-31

$7.04 - KA500-31 - Call 305-209-3786 to place an order.

Ships in Call 305-209-3786 to place an order. Call for pricing
KA500-33

KA500-33 - Call 305-209-3786 for information.

Ships in Call 305-209-3786 for information. Call for pricing
