PM1000-115 Replaces AC-5C-MD

PM1000 Series Information

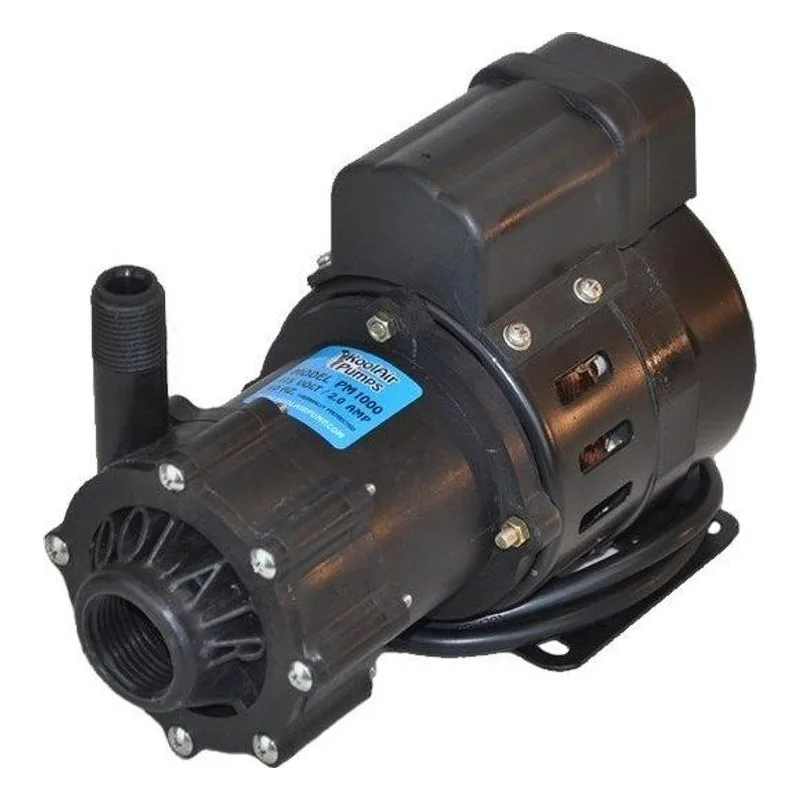

The Koolair PM1000-115 & PM1000-230 ODP (Open Drip Proof Motor Enclosure Model) is a seal-less centrifugal magnetic pump drive (10 lbs.) generating a maximum flow of 17.2 gallons per minute with a maximum head of 27 feet at 11.7 PSI.

The pump is dry run protected to withstand thermal overloads without failure. When cooled, the pump will resume operating normally.

Materials exposed to the solution (wet end) are Reinforced Polypropylene, Buna N, Cupro Nickel, Ceramic, and Ceramic Magnet.

When submerged, Epoxy, Stainless Steel, Polysulfone, and the Cord will also come in contact with the solution.
The inlet connection is a 1” female pipe thread and the outlet is ½” male pipe thread.

Includes fully integrated, heavy duty, Epoxy coated marine base, as well as the original base.

The motor is a1 Phase & 115V or 230v option, 1/8 Horsepower motor, running on either 50 or 60 HZ

Maximum internal pressure is 50 PSI and the maximum liquid temperature is 130 Fahrenheit or 54 Celsius.
