Image shown may not be actual product

767579

0 reviews

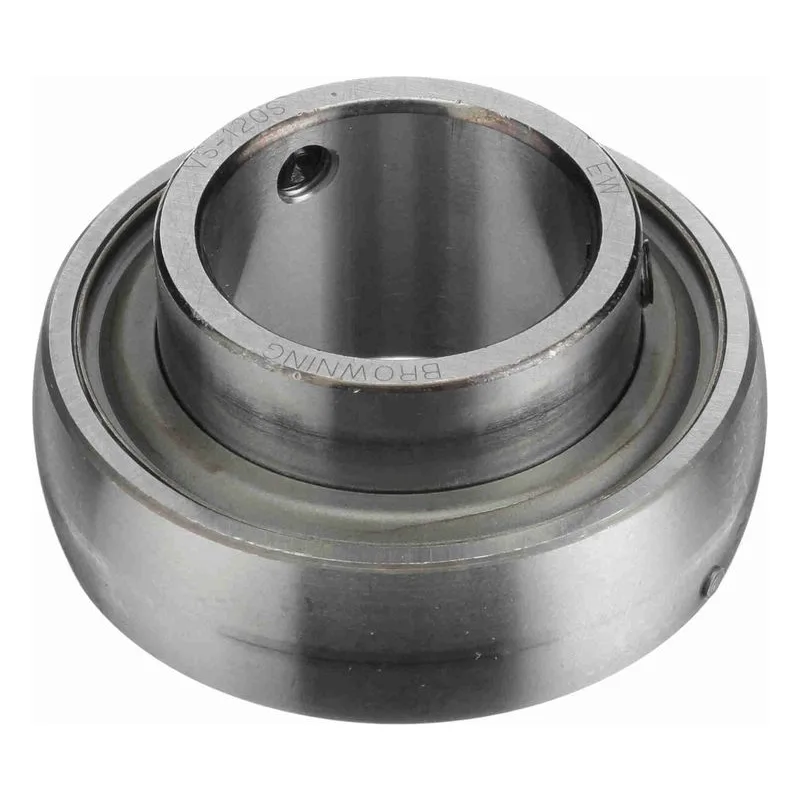

Browning 767579, Mounted Insert Only Ball Bearing - 52100 Bearing Steel - Setscrew Lock, Catalog Number: VS-120S. 1.25" (31.8mm) Straight Bore, Intermediate Duty, 1.156" (29.4mm) Width. Molded Fiber Glass Reinforced Nylon Ball Riding Retainer. Browning bearing insert with lubrication hole and anti-rotation rivet. Zone hardened inner ring with 120° spacing setscrew lock with diamond faceted setscrews. Single lip contact seal.

$54.56

Best Price Guarantee!
10PumpPoints

Item: 767579 | Model #: VS-120S

Overview
Series Info
Reviews

767579

Bearing Housing	Insert Only
Bearing Insert Coating	Uncoated
Bore Size	1.25" (31.8mm) - Straight Bore
Category Name	Mounted Bearings
Centerline to Front Face	0.781" (19.8mm)
Inner Race Length	1.156" (29.4mm)
Inner Ring OD	1.594" (40.5mm)
Insert Material	52100 Bearing Steel
Locking Type	Setscrew
Lubrication	Lithium Complex NLGI 2 Grease
Manufacturer	Regal Rexnord
Misalignment	±1.5° Misalignment - Static Only
Model Number	VS-120S
Other Factors	Zone-Hardened
Outer Race OD	2.441" (62mm)
Outer Race Width	0.709" (18mm)

Overall Width	1.156" (29.4mm)
Part Quantity	1
Parts Series	Intermediate Duty
Part Type	Mounted Ball Bearings
Product Notes	Browning bearing insert with lubrication hole & anti-rotation rivet; Zone hardened inner ring with 120° spacing setscrew lock with diamond faceted setscrews; Single lip contact seal;
Quick Specs	Mounted Insert Only Ball Bearing - 52100 Bearing Steel - Setscrew Lock
Radial Dynamic Load Capacity	4381 lbs
Radius	0.08" (2mm)
RETAINER	Molded fiber glass reinforced nylon Ball Riding Retainer
Rolling Element	Ball Bearing
Set Screw Thread	1/4-28
Speed (RPM)	3000 Maximum
Type	Single Lip Contact Seal
UPC	662289529254

Mounted Ball Bearings Information

Product Type
Bearings, Mounted Ball Bearing. Pillow Block, Flange Block, Take-Up Block & Assembly, Hanger Unsits & Cartridge Blocks.
Markets & Applications
85% Standard Products Air Handling Material Handling Packaging General Industrial MRO 15% Custom Products Food & Beverage
General Description
Browning Ball Bearings are segmented into three series ranging from intermediate duty for lightly loaded applications to medium duty for heavier loads. 100 – Intermediate Duty 200 – Normal Duty 300 – Medium Duty Locking – Browning offers three types of shaft locking devices: Set Screw BOA Concentric – All New Browning 360° Grip Eccentric Materials – Ball Bearing offered by Browning come in many different housings. Cast Iron Nickle Plated Cast Iron Ductile Iron Rubber Grommeted Stamped Steel
