767324

0 reviews

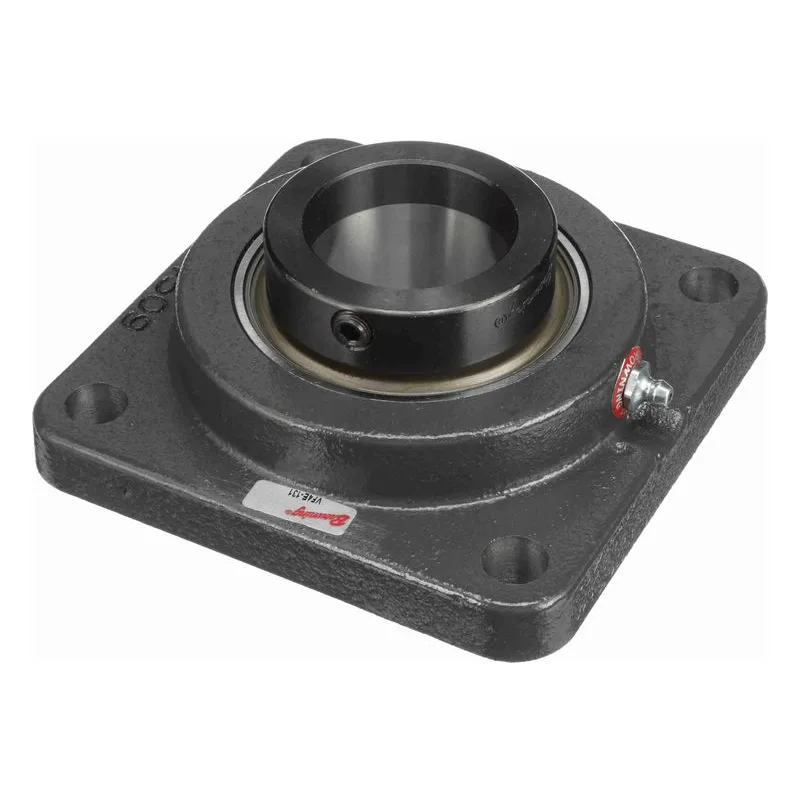

Browning 767324, Mounted Cast Iron Four Bolt Flange Ball Bearing - 52100 Bearing Steel - Eccentric Lock, Catalog Number: VF4E-131. 1.938" (49.2mm) Straight Bore, Intermediate Duty, 2.156" (54.8mm) Height, 5.625" (142.9mm) Length, 5.625" (142.9mm) Width. Molded Fiber Glass Reinforced Nylon Ball Riding Retainer. Powder coat epoxy cast iron housing. Eccentric locking designed for locking in direction of rotation. Single lip contact seal.

$139.23

Best Price Guarantee!
27PumpPoints

Item: 767324 | Model #: VF4E-131

Overview
Series Info
Reviews

767324

Bearing Housing	Gray One Piece Flange, Four Bolt
Bearing Insert Coating	Uncoated
BOLT	0.563"
Bolt Center to Center Length	4.375" (111.1mm)
Bore Size	1.938" (49.2mm) - Straight Bore
Category Name	Mounted Bearings
Centerline to Front Face	1.281" (32.5mm)
Collar OD	2.75" (69.9mm)
Configuration	No Pilot
FOOT HEIGHT	0.625" (15.9mm)
Housing Base	Semi-Solid
Housing Material	Cast Iron
Housing Width	5.625" (142.9 mm)
Inner Race Length	1.781" (45.2mm)
Insert Material	52100 Bearing Steel
Insert No.	VE-131
Locking Type	Eccentric
Lubrication	Lithium Complex NLGI 2 Grease
Manufacturer	Regal Rexnord

Misalignment	±1.5° Misalignment - Static Only
Model Number	VF4E-131
Other Factors	Zone-Hardened
Overall Height	2.156" (54.8mm)
Overall Width	5.625" (142.9mm)
OVR LENGTH	5.625" (142.9mm)
Part Quantity	1
Parts Series	Intermediate Duty
Part Type	Mounted Ball Bearings
Product Notes	Powder coat epoxy cast iron housing; Eccentric locking designed for locking in direction of rotation; Single lip contact seal;
Quick Specs	Mounted Cast Iron Four Bolt Flange Ball Bearing - 52100 Bearing Steel - Eccentric Lock
Radial Dynamic Load Capacity	7889 lbs
RETAINER	Molded fiber glass reinforced nylon Ball Riding Retainer
Rolling Element	Ball Bearing
Speed (RPM)	2000 Maximum
Type	Single Lip Contact Seal
UPC	662289313389

Mounted Ball Bearings Information

Product Type
Bearings, Mounted Ball Bearing. Pillow Block, Flange Block, Take-Up Block & Assembly, Hanger Unsits & Cartridge Blocks.
Markets & Applications
85% Standard Products Air Handling Material Handling Packaging General Industrial MRO 15% Custom Products Food & Beverage
General Description
Browning Ball Bearings are segmented into three series ranging from intermediate duty for lightly loaded applications to medium duty for heavier loads. 100 – Intermediate Duty 200 – Normal Duty 300 – Medium Duty Locking – Browning offers three types of shaft locking devices: Set Screw BOA Concentric – All New Browning 360° Grip Eccentric Materials – Ball Bearing offered by Browning come in many different housings. Cast Iron Nickle Plated Cast Iron Ductile Iron Rubber Grommeted Stamped Steel
