Image shown may not be actual product

764502

0 reviews

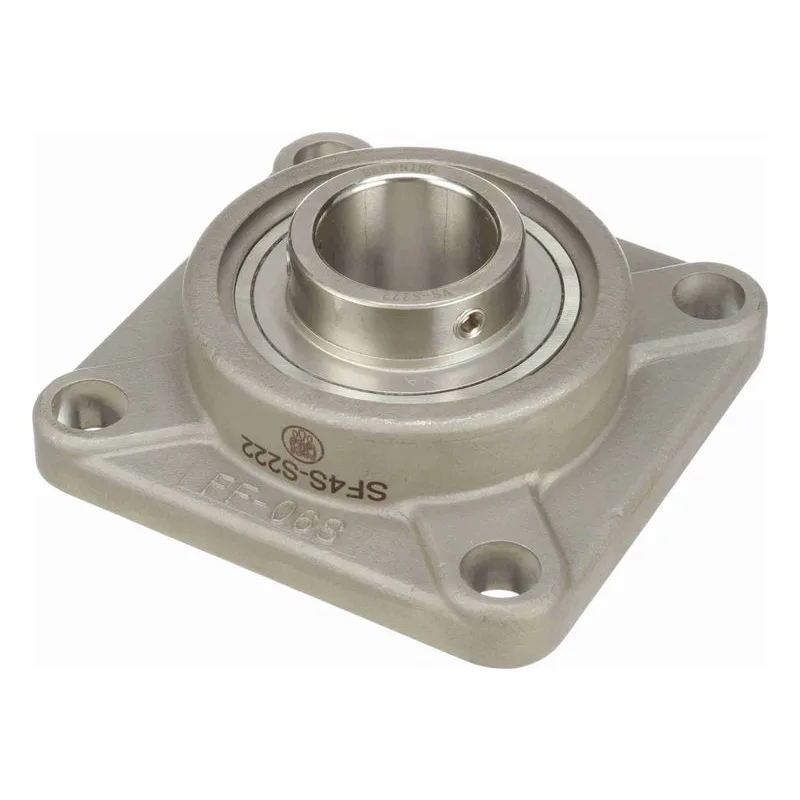

Browning 764502, Mounted Stainless Steel Four Bolt Flange Ball Bearing - 400 Series Stainless Steel - SS Setscrew Lock - Corrosion Resistant, Catalog Number: SF4S-S222. 1.375" (34.9mm) Straight Bore, Standard Duty, 1.752" (44.5mm) Height. Stainless Steel Riveted Ball Riding Retainer. 440C Stainless Steel bearing inner and outer ring with setscrew lock. 304 Passivated stainless steel investment cast housing. Molded silicone single lip contact seal with 300 series stainless steel flinger. H1 Food Grade grease.

$355.63

Best Price Guarantee!
70PumpPoints

Item: 764502 | Model #: SF4S-S222

Overview
Series Info
Reviews

764502

Bearing Housing	Silver One Piece Flange, Four Bolt
Bearing Insert Coating	Uncoated
BOLT	1"
Bolt Center to Center Length	3.625" (92.1mm)
Bore Size	1.375" (34.9mm) - Straight Bore
Category Name	Mounted Bearings
Configuration	No Pilot
Housing Base	Semi-Solid
Housing Material	Stainless Steel
Housing Width	4.63" (117.6 mm)
Inner Race Length	3.547" (90.1mm)
Insert Material	400 Series Stainless Steel
Insert No.	VS-S222
Locking Type	SS Setscrew
Lubrication	NSF H1 Food Grade Grease
Manufacturer	Regal Rexnord
Misalignment	±1.5° Misalignment - Static Only

Model Number	SF4S-S222
Options	Corrosion Resistant
Other Factors	Zone-Hardened
Overall Height	1.752" (44.5mm)
Part Quantity	1
Parts Series	Standard Duty
Part Type	Mounted Ball Bearings
Product Notes	440C Stainless Steel bearing inner & outer ring with setscrew lock; 304 Passivated stainless steel investment cast housing; Molded silicone single lip contact seal with 300 series stainless steel flinger; H1 Food Grade grease;
Quick Specs	Mounted Stainless Steel Four Bolt Flange Ball Bearing - 400 Series Stainless Steel - SS Setscrew Lock - Corrosion Resistant
RETAINER	Stainless Steel Riveted Ball Riding Retainer
Rolling Element	Ball Bearing
Speed (RPM)	4000 Maximum
Style	CRES SS
Type	Single Lip Contact Seal with Flinger
UPC	662460497419

Mounted Ball Bearings Information

Product Type
Bearings, Mounted Ball Bearing. Pillow Block, Flange Block, Take-Up Block & Assembly, Hanger Unsits & Cartridge Blocks.
Markets & Applications
85% Standard Products Air Handling Material Handling Packaging General Industrial MRO 15% Custom Products Food & Beverage
General Description
Browning Ball Bearings are segmented into three series ranging from intermediate duty for lightly loaded applications to medium duty for heavier loads. 100 – Intermediate Duty 200 – Normal Duty 300 – Medium Duty Locking – Browning offers three types of shaft locking devices: Set Screw BOA Concentric – All New Browning 360° Grip Eccentric Materials – Ball Bearing offered by Browning come in many different housings. Cast Iron Nickle Plated Cast Iron Ductile Iron Rubber Grommeted Stamped Steel
