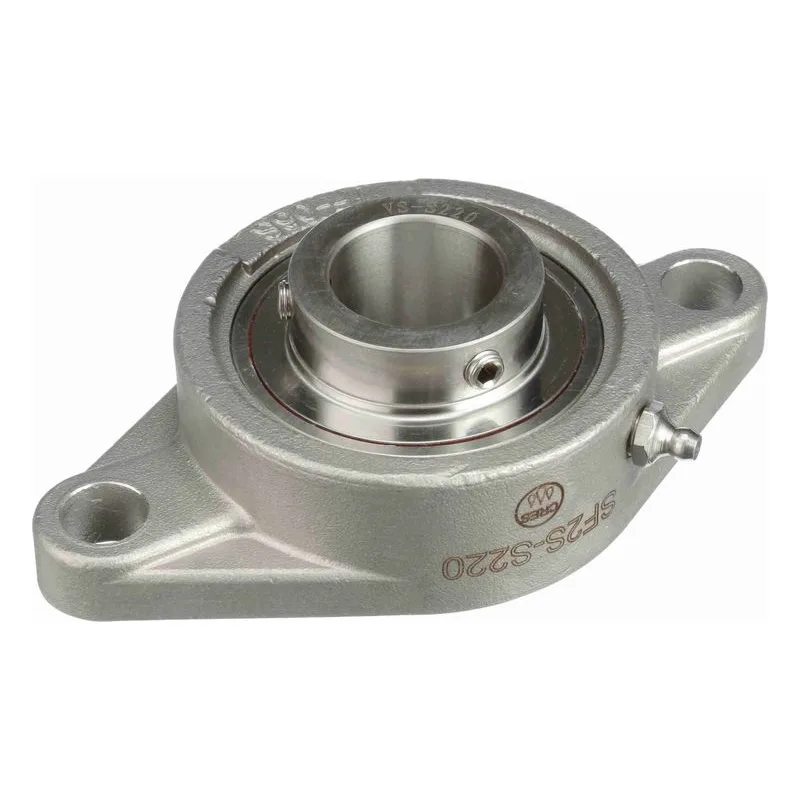

Image shown may not be actual product

764103

0 reviews

Browning 764103, Mounted Stainless Steel Two Bolt Flange Ball Bearing - 400 Series Stainless Steel - SS Setscrew Lock - Corrosion Resistant, Catalog Number: SF2S-S220. 1.25" (31.8mm) Straight Bore, Standard Duty, 1.75" (44.5mm) Height, 5.625" (142.9mm) Length, 3.625" (92.1mm) Width. Stainless Steel Riveted Ball Riding Retainer. 440C Stainless Steel bearing inner and outer ring with setscrew lock. 304 Passivated stainless steel investment cast housing. Molded silicone single lip contact seal with 300 series stainless steel flinger. H1 Food Grade grease.

$313.60

Best Price Guarantee!
62PumpPoints

Item: 764103 | Model #: SF2S-S220

Overview
Series Info
Reviews

764103

Bearing Housing	Silver One Piece Flange, Two Bolt
Bearing Insert Coating	Uncoated
BOLT	0.5"
Bolt Center to Center Length	4.594" (116.7mm)
Bore Size	1.25" (31.8mm) - Straight Bore
Category Name	Mounted Bearings
Centerline to Front Face	1" (25.4mm)
Configuration	No Pilot
FOOT HEIGHT	0.547" (13.9mm)
Housing Base	Semi-Solid
Housing Material	Stainless Steel
Housing Width	1.297" (32.9 mm)
Inner Race Length	1.688" (42.9mm)
Inner Ring OD	1.859" (47.2mm)
Insert Material	400 Series Stainless Steel
Insert No.	VS-S220
Locking Type	SS Setscrew
Lubrication	NSF H1 Food Grade Grease
Manufacturer	Regal Rexnord
Misalignment	±1.5° Misalignment - Static Only

Model Number	SF2S-S220
Options	Corrosion Resistant
Other Factors	Zone-Hardened
Overall Height	1.75" (44.5mm)
Overall Height to Inner Ring	1.75" (44.5mm)
Overall Width	3.625" (92.1mm)
OVR LENGTH	5.625" (142.9mm)
Part Quantity	1
Parts Series	Standard Duty
Part Type	Mounted Ball Bearings
Product Notes	440C Stainless Steel bearing inner & outer ring with setscrew lock; 304 Passivated stainless steel investment cast housing; Molded silicone single lip contact seal with 300 series stainless steel flinger; H1 Food Grade grease;
Quick Specs	Mounted Stainless Steel Two Bolt Flange Ball Bearing - 400 Series Stainless Steel - SS Setscrew Lock - Corrosion Resistant
Radial Dynamic Load Capacity	5782 lbs
RETAINER	Stainless Steel Riveted Ball Riding Retainer
Rolling Element	Ball Bearing
Speed (RPM)	4000 Maximum
Style	CRES SS
Type	Single Lip Contact Seal with Flinger
UPC	662460400747

Mounted Ball Bearings Information

Product Type
Bearings, Mounted Ball Bearing. Pillow Block, Flange Block, Take-Up Block & Assembly, Hanger Unsits & Cartridge Blocks.
Markets & Applications
85% Standard Products Air Handling Material Handling Packaging General Industrial MRO 15% Custom Products Food & Beverage
General Description
Browning Ball Bearings are segmented into three series ranging from intermediate duty for lightly loaded applications to medium duty for heavier loads. 100 – Intermediate Duty 200 – Normal Duty 300 – Medium Duty Locking – Browning offers three types of shaft locking devices: Set Screw BOA Concentric – All New Browning 360° Grip Eccentric Materials – Ball Bearing offered by Browning come in many different housings. Cast Iron Nickle Plated Cast Iron Ductile Iron Rubber Grommeted Stamped Steel
