764042

0 reviews

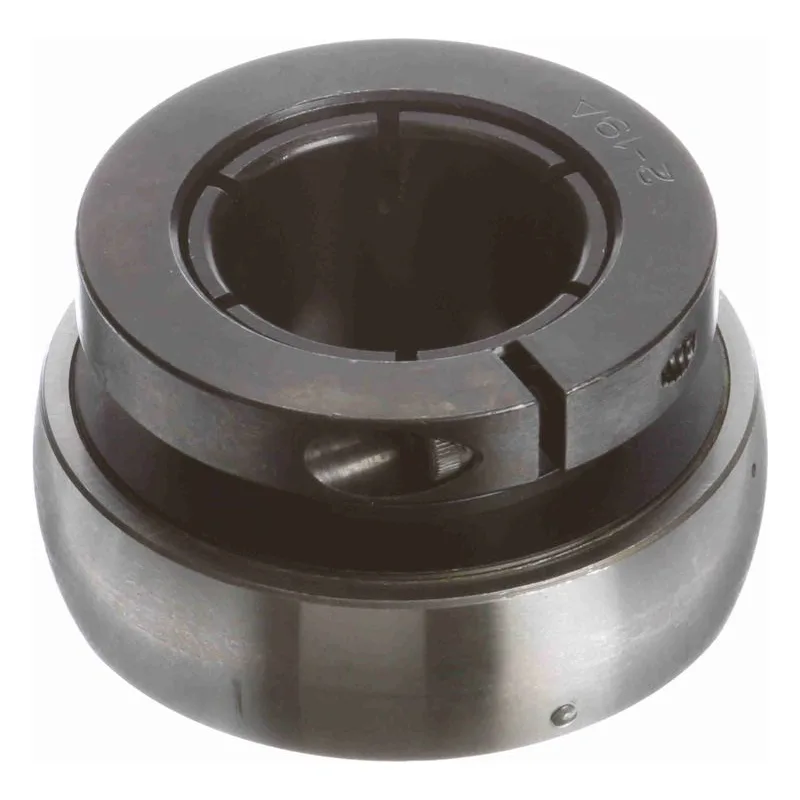

Browning 764042, Mounted Insert Only Ball Bearing - 52100 Bearing Steel, Black Oxided Inner - Concentric Lock, Catalog Number: VB-239. 2.438" (61.9mm) Straight Bore, Standard Duty, 2.625" (66.7mm) Width. Molded Fiber Glass Reinforced Nylon Ball Riding Retainer. Browning bearing insert with lubrication hole and anti-rotation rivet. BOA Concentric locking for near perfect concentricity. Single lip contact seal and flinger.

Call for Pricing

Best Price Guarantee!

Item: 764042 | Model #: VB-239

Overview
Series Info
Reviews

764042

Bearing Housing	Insert Only
Bearing Insert Coating	Black Oxide Coated Inner Ring
Bore Size	2.438" (61.9mm) - Straight Bore
Category Name	Mounted Bearings
Centerline to Front Face	1.625" (41.3mm)
Collar OD	4.125" (104.8mm)
Inner Race Length	2.625" (66.7mm)
Inner Ring OD	4.125" (104.8mm)
Insert Material	52100 Bearing Steel, Black Oxided Inner
Locking Type	Concentric
Lubrication	Lithium Complex NLGI 2 Grease
Manufacturer	Regal Rexnord
Misalignment	±1.5° Misalignment - Static Only
Model Number	VB-239
Other Factors	Zone-Hardened
Outer Race OD	4.331" (110mm)

Outer Race Width	1.063" (27mm)
Overall Width	2.625" (66.7mm)
Part Quantity	1
Parts Series	Standard Duty
Part Type	Mounted Ball Bearings
Product Notes	Browning bearing insert with lubrication hole & anti-rotation rivet; BOA Concentric locking for near perfect concentricity; Single lip contact seal & flinger;
Quick Specs	Mounted Insert Only Ball Bearing - 52100 Bearing Steel, Black Oxided Inner - Concentric Lock
Radial Dynamic Load Capacity	13971 lbs
Radius	0.08" (2mm)
RETAINER	Molded fiber glass reinforced nylon Ball Riding Retainer
Rolling Element	Ball Bearing
Speed (RPM)	2500 Maximum
Type	Single Lip Contact Seal with Flinger
UPC	662460345802

Mounted Ball Bearings Information

Product Type
Bearings, Mounted Ball Bearing. Pillow Block, Flange Block, Take-Up Block & Assembly, Hanger Unsits & Cartridge Blocks.
Markets & Applications
85% Standard Products Air Handling Material Handling Packaging General Industrial MRO 15% Custom Products Food & Beverage
General Description
Browning Ball Bearings are segmented into three series ranging from intermediate duty for lightly loaded applications to medium duty for heavier loads. 100 – Intermediate Duty 200 – Normal Duty 300 – Medium Duty Locking – Browning offers three types of shaft locking devices: Set Screw BOA Concentric – All New Browning 360° Grip Eccentric Materials – Ball Bearing offered by Browning come in many different housings. Cast Iron Nickle Plated Cast Iron Ductile Iron Rubber Grommeted Stamped Steel
