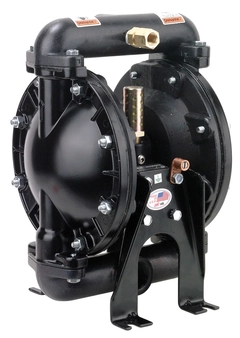

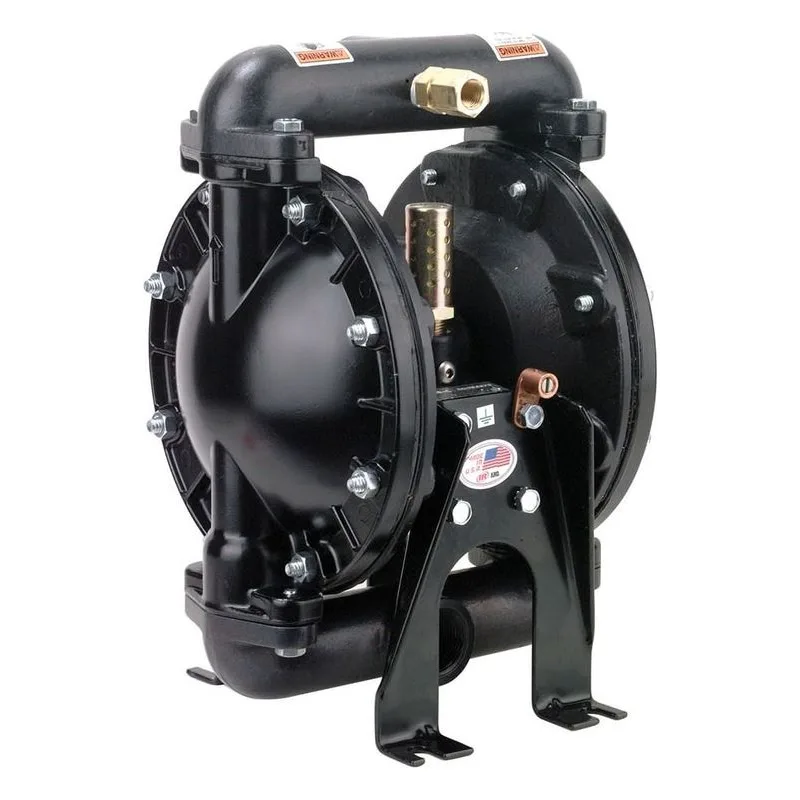

• ARO Pump 670042 Ingersoll Rand

Image shown may not be actual product

ARO

670042

0 reviews

ARO Pumps 670042 Diaphragm Pump, U.L. Listed Pumps | IR Ingersoll Rand

$924.00

Item: 670042
  • Overview
  • Series Info
  • Reviews
  • Literature/Manuals

670042

ARO Pumps 670042 Diaphragm Pump, U.L. Listed Pumps | IR Ingersoll Rand

Actual Weight10.1
CCN Number15241144
Model SeriesU.L. Listed Pumps
Quick SpecsDIAP PUMP,1/2IN,UL 670042

UL Fuel Transfer Information

Features & Benefits
Performance Specifications
Port: 1/2”, 1”, 1-1/2” and 2”
Ratio: 1:1
Maximum GPM (LPM): 670042: 12 (45.4)
650717-C: 29 (109.8) flooded inlet
650718-C: 75 (283.9) flooded inlet
650719-C: 75 (283.9) flooded inlet
Air Inlet (Female): 670042: 1/4”
650717-C: 1/4”
650718-C: 1/2”
650719-C: 3/4”
Fluid Inlet/Outlet (Female): 670042: 1/2”
650717-C: 1”
650718-C: 1-1/2”
650719-C: 2”
Max. operating pressure psi (bar): 50 (3.4)
Suspended solids max. dia. in. (mm): 670042: 3/32” (2.4)
650717-C: 1/8” (3.2)
650718-C: 1/4” (6.4)
650719-C: 1/4” (6.4)
Weight: lbs (kg) 670042: 10.36 (4.70)
650717-C: 22 (9.9)
650718-C: 60.4 (27.4)
General Description
Designed specifically for high-volume transfer, bulk-unloading,
or fueling applications. These pumps meet UL 79 specification
code. They are compatible with unleaded fuel, diesel
fuel, kerosene, aviation fuel and fuel oil.
Note: To meet UL79 specifications, pumps utilize pressure relief valves to limit dispensing line
pressure to under 50-psi. If line pressure between the pump and dispensing point exceeds 50 psi
due to thermal expansion, line compression, backfeed, or gravity, the pressure relief valve opens
and bleeds off excess pressure. The relief valve must be plumbed to return the bleed-off fuel to the
storage container.
