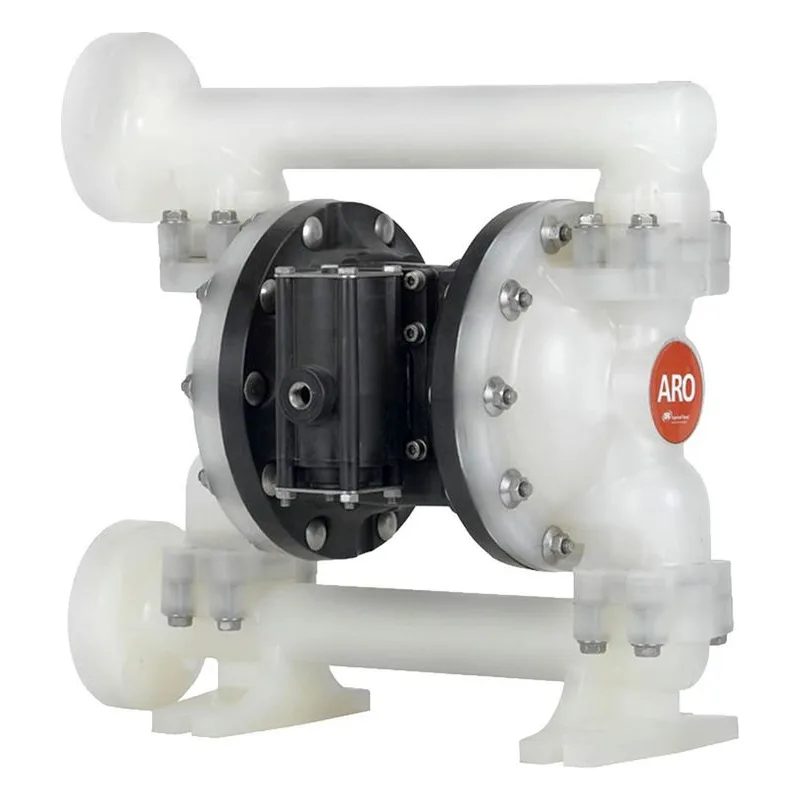

Image shown may not be actual product
PE10E-FNS-KTT-AF0
ARO PE10E-FNS-KTT-AF0 1" Expert Series Non-Metallic Air Operated Double Diaphragm Pump with an Electronic Interface. Conductive Polypropylene Build with PTFE/Santoprene Dipahragms and Conductive PVDF Wetted Parts. 1:1 Ratio, 53 GPM (Gallons Per Minute) Max Flow Rate, and 120 PSI Maximum Pressure. 1" ANSI/DIN Flange Fluid Connections, 1/4" NPTF Air Inlet, and 1/8" (0.125") Maximum Solids Handling. 19 ft. Maximum Dry Suction Lift and 40°F to 225°F Temperature Range. An Ingersoll Rand Product.
$4,697.37
- Best Price Guarantee!
- 939PumpPoints
Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.
- Overview
- Reviews
- Literature/Manuals
- Repair Parts
PE10E-FNS-KTT-AF0
ARO PE10E-FNS-KTT-AF0 1" Expert Series Non-Metallic Air Operated Double Diaphragm Pump with an Electronic Interface. Conductive Polypropylene Build with PTFE/Santoprene Dipahragms and Conductive PVDF Wetted Parts. 1:1 Ratio, 53 GPM (Gallons Per Minute) Max Flow Rate, and 120 PSI Maximum Pressure. 1" ANSI/DIN Flange Fluid Connections, 1/4" NPTF Air Inlet, and 1/8" (0.125") Maximum Solids Handling. 19 ft. Maximum Dry Suction Lift and 40°F to 225°F Temperature Range. An Ingersoll Rand Product.
| Air Inlet | 1/4 - 18 NPTF |
| Ball Material | PTFE |
| Configuration | Electronic Interface |
| Diaphragm | PTFE/Santoprene |
| Discharge NPT (Inches) | 1 - 11-1/2 N.P.T.F., Rp1(1-11 BSP) 1” ANSI/DIN hybrid flange (side or center) |
| Discharge Volume Per Cycle | 0.226 Gal (0.86 L) |
| Fluid Port | 1" ANSI / DIN Flange (Raised Face) |
| Includes | Muffler |
| Inlet Pressure (PSI) | 120 PSIG (8.3 Bar) |
| Material | Conductive Polypropylene |
| Maximum Flow (GPM) | 53 GPM (200 lpm) |
| Maximum Pressure (PSI) | 120 PSI (8.3 Bar) |
| Max Suction Lift | 19 ft. (5.7m) |
| Quick Specs | 1" PUMP ASSY - RESTRICTED |
| Solids (Inches) | 1/8" (3.3mm) |
| Suction NPT (Inches) | 1 - 11-1/2 N.P.T.F., Rp1(1-11 BSP) 1” ANSI/DIN hybrid flange (side or center) |
| Temperature Range | 40°F to 225°F (4°C to 107°C) |
| Turn Down Ratio | 1:1 |
| Valve / Seat / O-Ring | Polypropylene Seat |
| Wetted Parts | Conductive PVDF |
| Type | Title | Link | |
|---|---|---|---|
Expert Series Diaphragm Pumps Brochure | View | ||
PD10E 1" Conductive Non Metallic Datasheet | View | ||
PD15E 1 1/2" Conductive Non Metallic Datasheet | View | ||
PD20E 2" Conductive Non Metallic Datasheet | View | ||
PD10E 1" Conductive Non Metallic Manual | View | ||
PD15E 1 1/2" Conductive Non Metallic Manual | View | ||
PD20E 2" Conductive Non Metallic Manual | View | ||
Repair Parts for PE10E-FNS-KTT-AF0
| Product | qty. | shipping | price | ||
|---|---|---|---|---|---|
 | 637397 | Ships in | $110.60 | ||
| 637396-TT | Ships in | $642.50 | ||
| 637396-KTT | Ships in | $896.70 | ||
| 66073-2 | Ships in | $409.20 | ||
| 67237 | Ships in | $1,718.70 | ||
| 67350 | Ships in | Call for pricing | ||
