TP1020S51FF44AA2

Image shown may not be actual product

TP1020S51FF44AA2

0 reviews

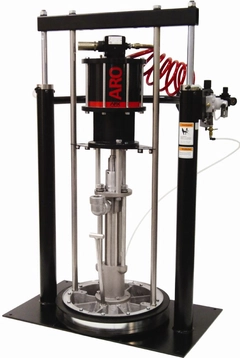

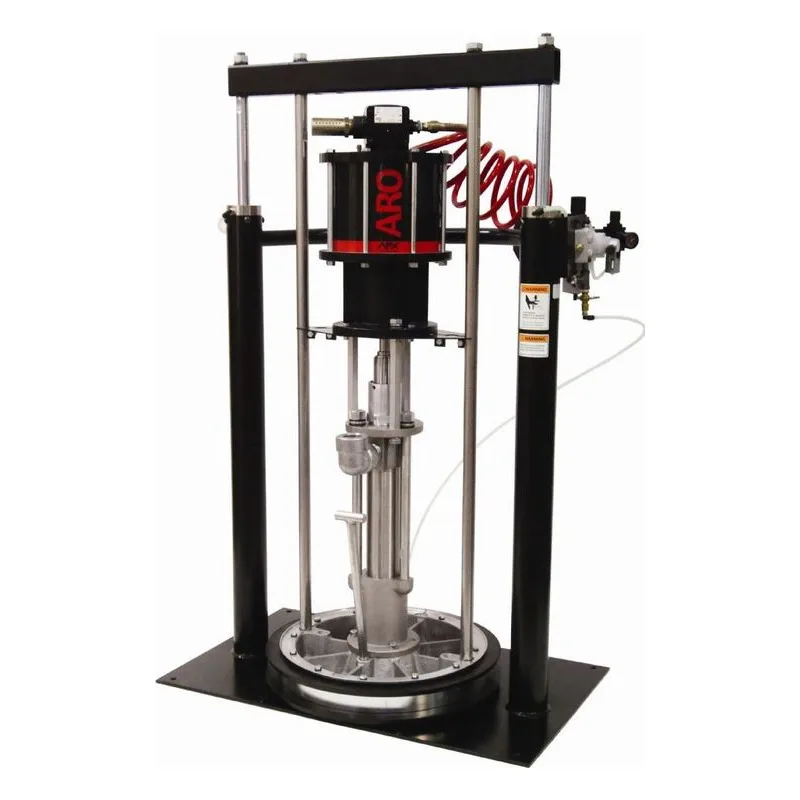

ARO TP1020S51FF44AA2 TPX Series Two-Post Ram Piston Pump Package. 10" Motor, 20:1 Ratio, Container Suitability: 55 Gallon (400 lbs). Carbon Steel, UHMW-PE (Upper & Lower) Packing, Multiple Wave Spring, Carbon steel with Hard Chrome Plating Plunger. Flange Mount Inlet, 1-1/2 - 11-1/2 NPTF - 1 Outlet, 600 - 2250 psi (41.4 - 155.2 bar) Pressure Range.

$17,134.56

Best Price Guarantee!
3426PumpPoints

Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.

Item: TP1020S51FF44AA2 | Model #: AF1020S11FF44

Overview
Reviews
Literature/Manuals

TP1020S51FF44AA2

Air Inlet	3/4 - 14 NPTF - 1
Build	Two-Post Ram
CCN Number	47101266
Discharge NPT (Inches)	1-1/2 - 11-1/2 NPTF - 1
Includes	Features a two-post ram pump follower plate and controls designed for high-viscosity applications
Inlet Pressure (PSI)	30 - 90 psi (2.1 - 6.2 bar)
Material	Carbon Steel
Model Number	AF1020S11FF44
Model Series	ARO Force 55 Gallon TPX Package
Motor	10"
Mounting Type	55 Gallon Container (400 lbs)

Options	Advanced Ram & Pump Controls
Other Factors	6" Stroke Length
Packing Gland	UHMW-PE (Upper & Lower)
Pressure Range	600 - 2250 psi (41.4 - 155.2 bar)
Product Notes	Carbon steel with Hard Chrome Plating Plunger
Pump Size	20:1
Quick Specs	AFX 55 GAL RAM PACKAGE TP1020S51FF44AA2
Spring	Multiple Wave Spring
Suction NPT (Inches)	Flange Mount
Type	Primer Piston
