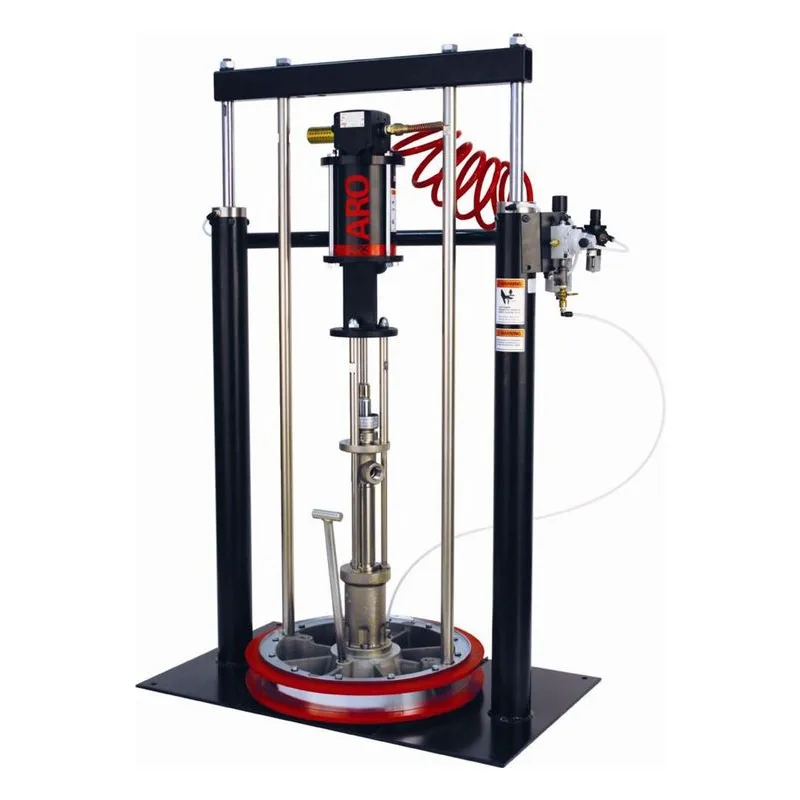

Image shown may not be actual product

TP0646S51FF47AA2

0 reviews

ARO TP0646S51FF47AA2 TPX Series Two-Post Ram Piston Pump Package. 6" Motor, 46:1 Ratio, Container Suitability: 55 Gallon (400 lbs). Carbon Steel, UHMW-PE (Upper & Lower) Packing, Multiple Wave Spring, Hardened Stainless Steel w/ Hard Chrome Plating Plunger. Flange Mount Inlet, 1 - 11-1/2 NPTF - 1 Outlet, 1380 - 7485 psi (95.1 - 516.2 bar) Pressure Range.

$12,166.91

Best Price Guarantee!
2433PumpPoints

Item: TP0646S51FF47AA2 | Model #: AF0646S11FF47

Overview
Reviews
Literature/Manuals

TP0646S51FF47AA2

Air Inlet	1/2 - 14 NPTF - 1
Build	Two-Post Ram
CCN Number	15338254
Discharge NPT (Inches)	1 - 11-1/2 NPTF - 1
Includes	Features a two-post ram pump follower plate and controls designed for high-viscosity applications
Inlet Pressure (PSI)	30 - 150 psi (2.1 - 10.3 bar)
Material	Carbon Steel
Model Number	AF0646S11FF47
Model Series	ARO Force 55 Gallon TPX Package
Motor	6"
Mounting Type	55 Gallon Container (400 lbs)

Options	Advanced Ram & Pump Controls
Other Factors	6" Stroke Length
Packing Gland	UHMW-PE (Upper & Lower)
Pressure Range	1380 - 7485 psi (95.1 - 516.2 bar)
Product Notes	Hardened Stainless Steel w/ Hard Chrome Plating Plunger
Pump Size	46:1
Quick Specs	AFX 55 GAL RAM PACKAGE TP0646S51FF47AA2
Spring	Multiple Wave Spring
Suction NPT (Inches)	Flange Mount
Type	Chop Check
