TP0665S21FF47EA2

0 reviews

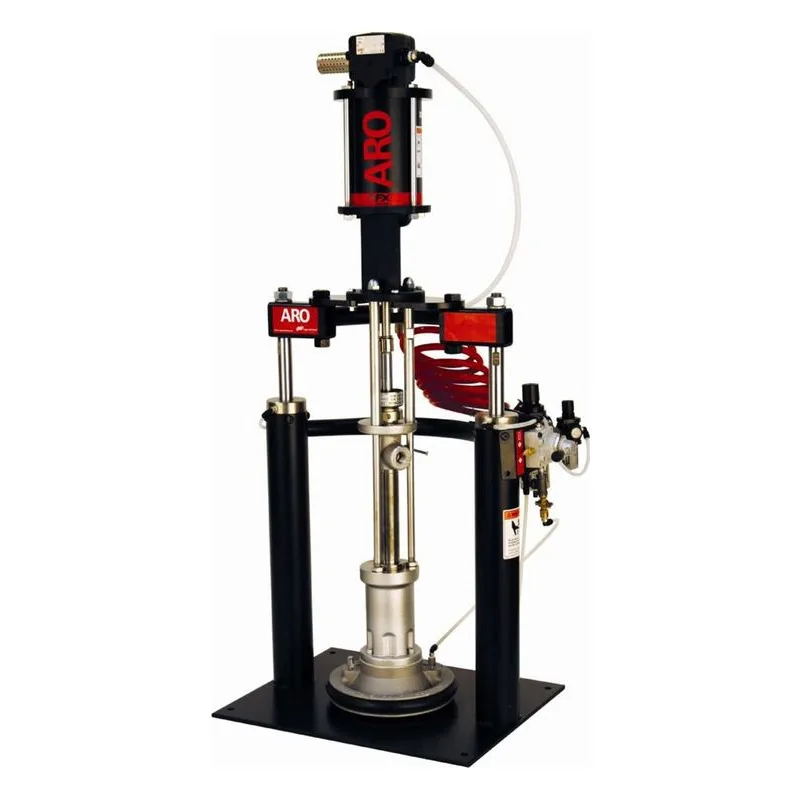

ARO TP0665S21FF47EA2 TPX Series Two-Post Ram Piston Pump Package. 6" Motor, 65:1 Ratio, Container Suitability: 5 Gallon (35 lbs). Carbon Steel, UHMW-PE (Upper & Lower) Packing, Multiple Wave Spring, Hardened Stainless Steel w/ Hard Chrome plating Plunger with Standard Piston Plunger. Flange Mount Inlet, 3/4 - 14 NPTF - 1 Outlet, 1950 - 7475 psi (134.5 - 515.5 bar) Pressure Range.

$12,540.67

Best Price Guarantee!
2507PumpPoints

Item: TP0665S21FF47EA2 | Model #: AF0665S11FF47

Overview
Reviews
Literature/Manuals

TP0665S21FF47EA2

Air Inlet	1/2 - 14 NPTF - 1
Build	Two-Post Ram
CCN Number	15338320
Discharge NPT (Inches)	3/4 - 14 NPTF - 1
Includes	Features a two-post ram pump follower plate and controls designed for high-viscosity applications
Inlet Pressure (PSI)	30 - 115 psi (2.1 - 7.9 bar)
Material	Carbon Steel
Model Number	AF0665S11FF47
Model Series	ARO Force 5 Gallon TPX Package
Motor	6"
Mounting Type	5 Gallon Container (35 lbs)

Options	Advanced Ram & Pump Controls
Other Factors	6" Stroke Length
Packing Gland	UHMW-PE (Upper & Lower)
Pressure Range	1950 - 7475 psi (134.5 - 515.5 bar)
Product Notes	Hardened Stainless Steel w/ Hard Chrome plating Plunger with Standard Piston Plunger
Pump Size	65:1
Quick Specs	AFX 5 GAL RAM PACKAGE TP0665S21FF47EA2
Spring	Multiple Wave Spring
Suction NPT (Inches)	Flange Mount
Type	Chop Check
